Godot Environment Query Orchestrator

Godot Environment Query Orchestrator (GEQO) is a node-based environment querying system for Godot 4.5+, inspired by Unreal Engine's EQS. It allows AI agents to evaluate the world around them and select the best position/node/item based on customizable generators and tests (e.g distance, visibility), made around contexts (Any node with a position value). It is implemented in C++ as a GDExtension for higher performance.

Documentation is available here.

Features

Node based environment queries

• Build queries in the scene tree by combining Generators (where to sample positions) and Tests (how to evaluate them), similar to Unreal's EQS workflow.

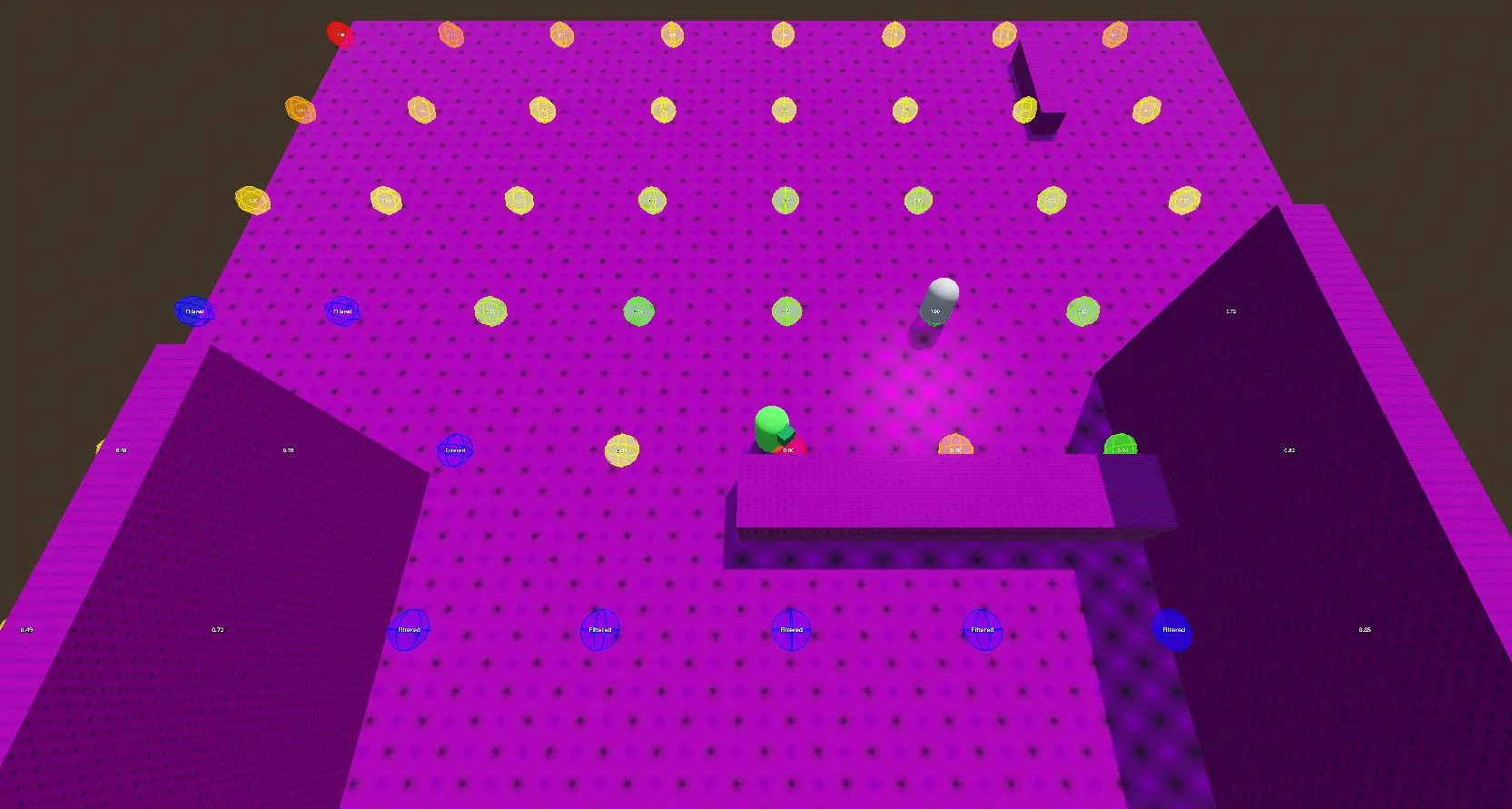

Visual debugging in 2D and 3D

• Debug queries at runtime by enabling use_debug_shapes in an EnvironmentQuery.
• Color-coded visualizations display the sampled points and their scores.

Written in C++ GDExtension with performance in mind.

• Implemented in C++, using PhysicsDirectSpaceState for fast queries on objects and areas.
• Time-sliced query processing, spreading the workload of each query across multiple frames to prevent lag spikes during gameplay.

Various built-in nodes to jump straight into designing.

• 4 contexts
• 4 generators
• 5 tests

Custom contexts and tests

Extend GEQO with custom logic using GDScript.

For examples, see example custom scripts

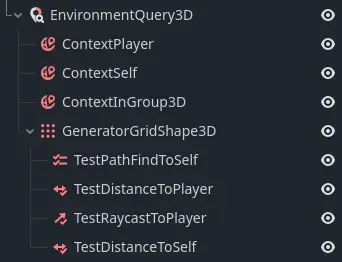

Query Example

How to Use

For more information, see Getting Started

Connect signal, then request a query.

func _ready():
    $EnvironmentQuery3D.query_finished.connect(_on_query_finished)
    $EnvironmentQuery3D.request_query()

After the query finished, the signal is emitted and you can use the results.

func _on_query_finished(result: QueryResult3D):
    var best_position: Vector3 = result.get_highest_score_position()
    var best_node: Node = result.get_highest_score_node()
    # Use the results on your navigation implementation
    navigate_to(best_position)

You can also use await to wait until the query is over and access the result.

$EnvironmentQuery3D.request_query()
await $EnvironmentQuery3D.query_finished
var query_result: QueryResult3D = $EnvironmentQuery3D.get_result()
var best_position: Vector3 = query_result.get_highest_score_position()

Download

1. Grab the latest release compatible with your Godot version.
2. Unpack the addons/geqo folder into your /addons folder in your Godot project.
3. Enable the addon within the Godot settings: Project > Project Settings > Plugins

Credits

• Node logos by @BenjaTK
