Godot Material Baker

A Godot 4.4+ tool for automatic baking of shader materials into images and packing them into Texture2DArray resources live in the editor (re-baking on every resource change) and optionally at runtime (generating arrays on scene play in build).

How It Works

Baker nodes render shader parameters through a sub-viewport, store the resulting images, and notify the manager script.

Multiple categories (e.g. Albedo & Height, Normal & Roughness) can be defined in the manager, each using its own channel packing visual shader.

Baking is automatic — any change to shader parameters, including texture resources, triggers a re-bake only for the affected category.

Generated arrays are synced to a shader, and pre/post save hooks prevent in-memory resources (not saved to a .res file) from being serialized into the scene.

How to Use

Copy material-baker into your res://addons/, enable under Project > Project Settings > Plugins.
Add a MaterialBakerArrays node to the scene and quick load the categories, otherwise give them a unique baker_category_uid.
Use the Create Material Baker button to add and auto-configure category configs and image settings, or duplicate existing baker nodes.
Save arrays to .res files and assign them as references to your shaders or use RuntimeShaderArrays to auto generate and sync arrays to the shader at runtime.
Upon editing arrays are decompressed for performance, for .res file arrays press Compress when done editing to reduce the file size.

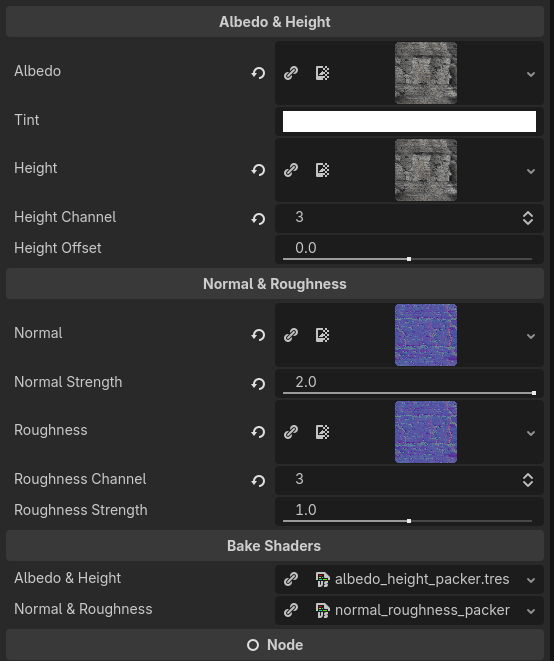

Each MaterialBaker shows the shader parameters for every category directly in the Inspector.

In the screenshot albedo and height are packed to the same texture so the channel is set to 3 which is Alpha (0123 => RGBA).

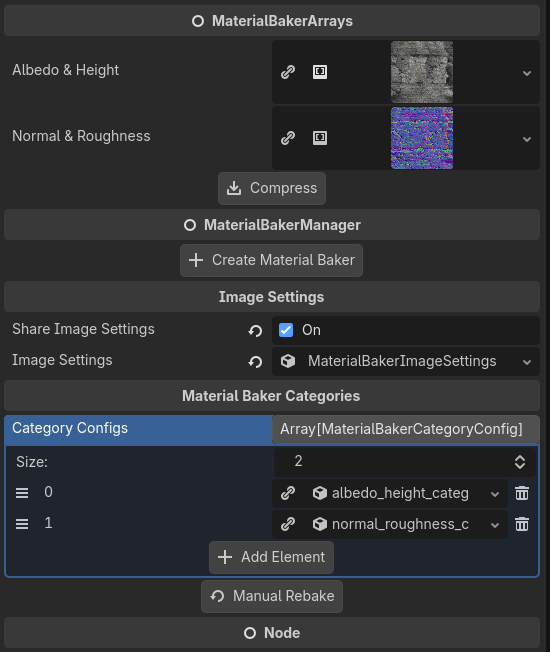

Material Baker	Material Baker Arrays

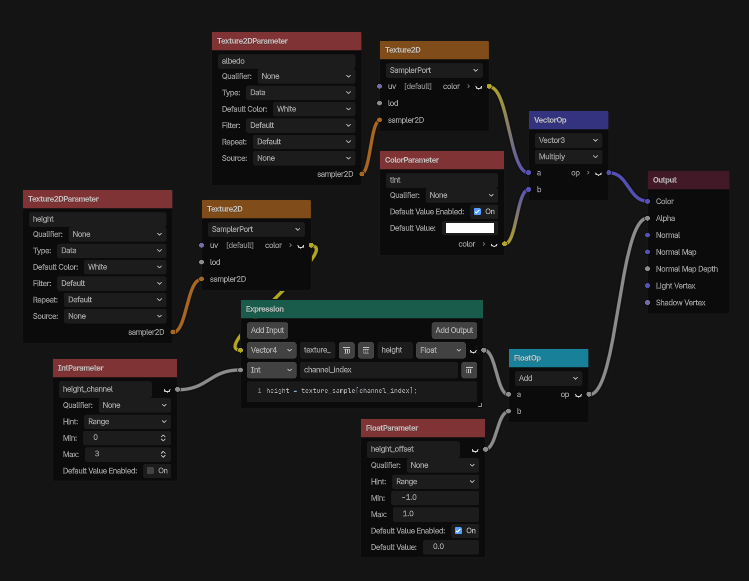

Bake Shaders

When using your own shaders note that the blend mode must be set to premul_alpha in order for alpha to not dim the color output.

Duplicate one of the examples and adapt it to fit your texture inputs or add custom image processing logic.

Examples included:

albedo_height_packer.tres — packs albedo (RGB) + height (A)
normal_roughness_packer.tres — packs normal (RGB) + roughness (A)

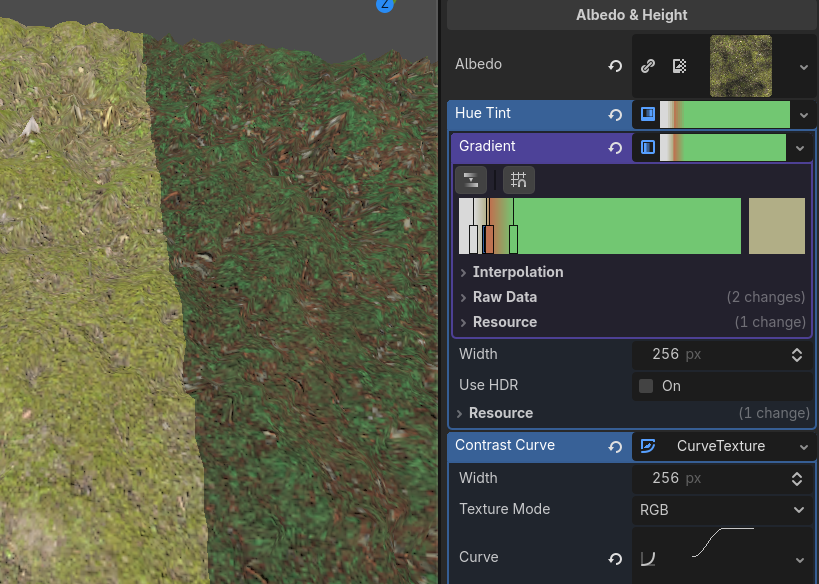

albedo_height_process_advanced.tres — showcases more complex tinting and contrast

Basic	Advanced

Compression

Compression is ignored during editing for performance and arrays are decompressed.
Clicking the Compress button on the MaterialBakerArrays will apply the configured formats to the arrays. Compression will persist if you saved the arrays to a .res file.

Settings

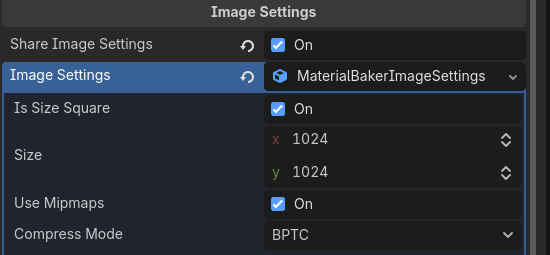

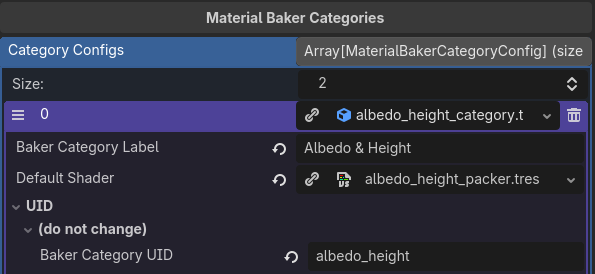

Material Baker Image Settings	Material Baker Category Configs

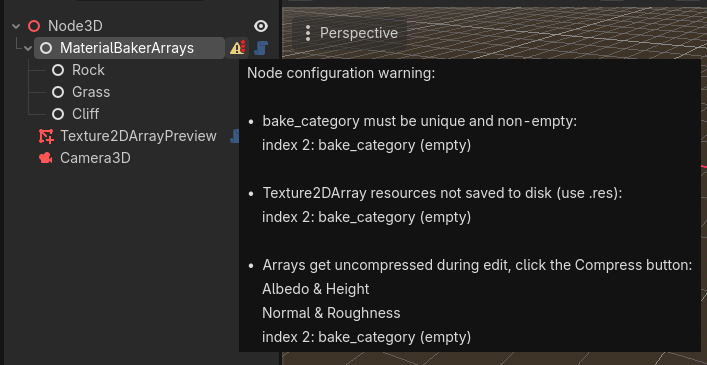

Warnings

README Warnings

Examples

Texture2DArray Preview

Mesh preview to inspect individual layers of the generated Texture2DArrays.

Terrain3D (WIP)

Terrain3DMaterialBaker extends MaterialBakerManager and writes baked images into the Terrain3D texture list.

Note that you have to comment this out or focus loss breaks usage asset_dock.gd:668 # plugin.select_terrain()

Classes

Class	Extends	Role
`MaterialBakerArrays`	`MaterialBakerManager`	Collects baked images from all bakers into one `Texture2DArray` per category. Has a `↓ Compress` button to apply the configured compression format when ready.
`RuntimeShaderArrays`	`Node`	Bridges a `MaterialBakerArrays` node to a `ShaderMaterial` at runtime. Maps each `baker_category_uid` to a configurable shader parameter name. Tracks when arrays are ready and updates the material parameters automatically. On editor save, temporarily swaps live arrays for their saved `.res` counterparts to avoid serializing them into the scene file.
`MaterialBakerManager`	`Node`	Owns `category_configs` and `image_settings`, propagates them to `MaterialBaker` nodes. Has a `+ Create Material Baker` button that adds a new baker with all the configs preconfigured. Override: `baker_rendered`, `bakers_structure_changed`, and `regenerate`.
`MaterialBaker`	`ResourceWatcher`	Exposes all shader parameters for each category directly in the Inspector. Re-bakes automatically when resources change, and emits `baker_rendered`. Uses `texture_hot_reload` to swap external texture changes while Godot is not focused.
`MaterialBakerCategory`	`Node`	Internal renderer per category. Owns a `SubViewport + ColorRect`. Uses the category's shader, triggers a single-frame render, and returns the `Image` result.
Configs
`MaterialBakerCategoryConfig`	`Resource`	Shared definition for one baker category. A unique `config_id`, a `bake_category` name, a `default_shader`, and a `MaterialBakerImageSettings`. All bakers under the same manager reference the same config instances.
`MaterialBakerCategoryState`	`Resource`	Per-baker, per-category mutable state. The active `Shader`, its auto-managed `ShaderMaterial`, and a cache of the last baked `Image`.
`MaterialBakerImageSettings`	`Resource`	Output `size`, `is_size_square`, `use_mipmaps` toggle, and `compress_mode` format. Can be shared across all categories or set individually per category.
Utilities
`ResourceWatcher`	`Node`	Recursively connects to `changed` signal on all `Resource` properties (and their sub-resources). Batches notifications and calls `on_resource_changed` once per deferred frame.
`TextureHotReloader`	`Node`	Watches `Texture2D` parameters of registered `ShaderMaterial`s for external file changes. Reloads textures via the reimport signal and also polls file modification times as a fallback.
`ShaderToPNG`	`MaterialBakerCategory`	Bakes the shader material into a .png file, e.g., for channel packing after which you can discard originals. Optionally specify an existing .png whose import settings will be used for the generated one.

Generating Arrays at Runtime

Arrays that are not saved to .res files are auto generated upon entering the scene play.
This allows a game to ship with raw base textures and generate the rest asynchronously on the fly.
Use RuntimeShaderArrays to auto sync arrays to shader parameters and have it prevent Godot from serializing references to scene.

Future Research

Compression in build?

Contribution

If you find an issue or have a use case that could be covered by this project, please open a new ticket or a PR.
