Easy State Machine Plugin

This is a modular, signal-driven state machine for Godot 4.x
It was designed to manage different states easily with a lot of helpful, prebuilt functions.

Architecture Overview

• StateMachine: The central node that manages transitions and signal routing.
• State: This node is representing a single behavior or logic state.

How to Use

1. Create a StateMachine node.
2. Add one or more State nodes as children.

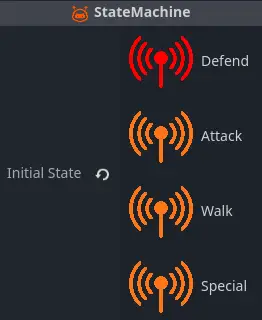

3. Assign an initialState in the StateMachine.

Tips & Best Practices

• Use the signals of the States to handle logic only if the State is active.
• Bind States for parallel behaviors. If the main State ends, all bound States will also end.

State Class Reference

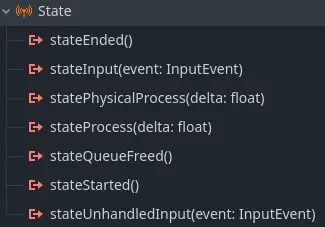

Signals

• stateStarted
  Emitted when the State becomes active.

• stateProcess(delta: float)
  Emitted every frame if the State is active.

• statePhysicalProcess(delta: float)
  Emitted every physics frame if the State is active.

• stateInput(event: InputEvent)
  Emitted when an input event is received while the State is active.

• stateUnhandledInput(event: InputEvent)
  Emitted when an unhandled input event is received while the State is active.

• stateEnded
  Emitted when the State is getting turned inactive.

• stateQueueFreed
  Emitted when the StateMachine is queued for deletion while this State is still active.

State Switching Methods

• switch_to_state_by_name(name: String)
  Switches to another State by name.

• switch_to_state_by_state(state: State)
  Switches to another State by instance.

Binding Methods

• bind_state_by_name(name: String)
  Binds another State by name to run alongside the current one.

• bind_state_by_state(state: State)
  Binds another State by instance.

• switch_binding_to_name(name: String)
  Replaces the current binding with another State by name.

• switch_binding_to_state(state: State)
  Replaces the current binding with another State by instance.

Getter Methods

• is_active()
  Returns true if this State is currently active.

• is_bound()
  Returns true if this State is currently bound.

• get_active_state()
  Returns the currently active State.

• get_bound_states()
  Returns all bound States.

• get_previous_state()
  Returns the previously active State.

StateMachine Class Reference

Properties

• initialState
  The starting State.

• selectedState
  The currently active State.

• previousState
  The last active State.

• boundStates
  States that are active alongside the main State.

State Management by Name

• switch_to_state_by_name(name: String)
  Switches to a State by name.

• bind_state_by_name(name: String)
  Binds a State by name.

• switch_binding_to_name(name: String)
  Switches binding to a State by name.

State Management by Instance

• switch_to_state_by_state(state: State)
  Switches to a State by instance.

• bind_state_by_state(state: State)
  Binds a State by instance.

• switch_binding_to_state(state: State)
  Switches binding to a State by instance.

Getter Methods

• get_active_state()
  Returns the currently active State.

• get_bound_states()
  Returns all bound States.

• get_previous_state()
  Returns the previously active State.
