Vision2D

A Godot plugin (version 4.x) for rendering 2d fields of vision, inspired by Teleglitch.

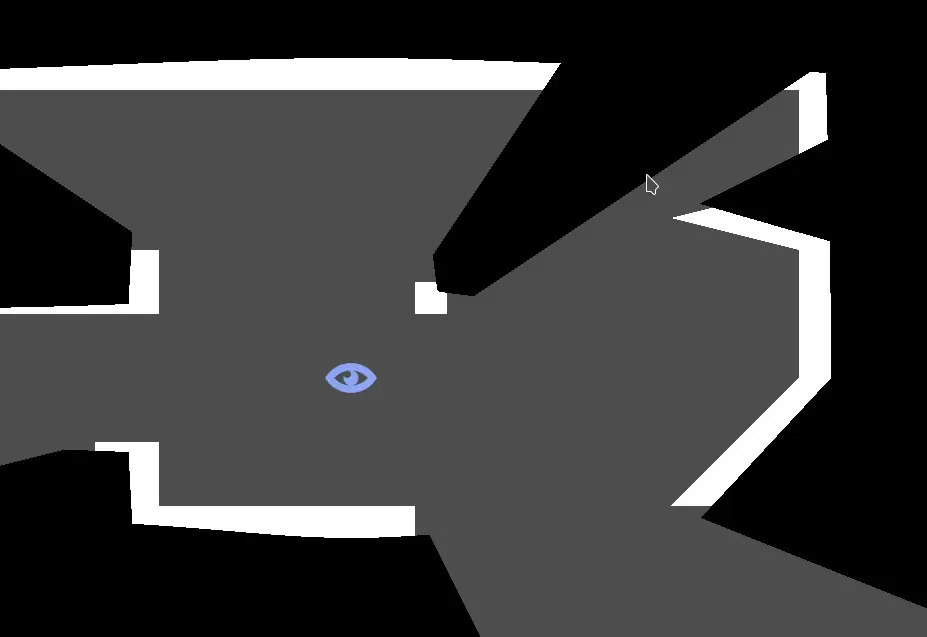

The plugin renders a number of polygons covering up parts of the screen that are outside the observer's field of vision.

The field of vision can be blocked with a VisionOccluderLine node or a VisionOccluderPolygon node:

• VisionOccluderLine - Represents a line that blocks the field of vision. Extends Line2D.

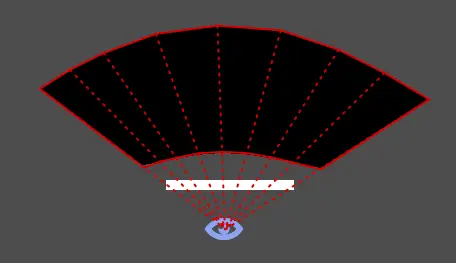

• VisionOccluderPolygon - Represents a polygon that blocks the field of vision. Extends Polygon2D.

Both nodes have the following properties:

• observer: Node2D - A Node2D representing the position of the observer.
• shadow_color: Color - Color of the shadow that covers up the screen.
• size: float - Size of the shade that covers up the screen.
• penetration: float - Determines how deep the vision can penetrate this occluder.
• max_segment_size: float - Max. size of the segment that casts the shadow (smaller segments -> more detail).

Installation

1. Create an addons directory inside your project directory.
2. Get the plugin from the AssetLib or from GitHub
   • From the AssetLib: Open the AssetLib from the Godot editor and search for "Vision2D". Click download to install the plugin.
   • From GitHub: Run git clone https://github.com/peter-kish/vision2d.git and copy the contents of the addons directory to your projects addons directory.
3. Enable the plugin in Project Settings > Plugins.
