Multi-Mouse

Multi-Mouse is a Godot 4 add-on that delivers raw per-device mouse input. Plug in multiple USB mice and each one gets its own motion stream, button events, and metadata so your game can treat every physical mouse as a unique player or tool.

Project home: https://github.com/duan-c/Multi-Mouse

Windows (Raw Input) and Linux (ManyMouse) backends are working end-to-end (see the demos below). macOS support is still on the roadmap.

Highlights

• Node-based workflow – the MultiMouse node can be dropped into any scene. Call attach_to_window() + enable() and you immediately start receiving motion, button, device_connected, and device_disconnected signals.
• Godot-friendly events – the native extension emits standard InputEventMouseMotion / InputEventMouseButton objects that already contain device, device_guid, and raw deltas.
• Reference demos – the Simple motion logger, the two-mouse Pong scene, and the fully interactive Slime toy showcase how to use the node in real projects.

Repository layout

Multi-Mouse/
├─ addons/multi_mouse/    # Godot plugin + MultiMouse node
├─ demo/                  # Simple + Slime demo projects
├─ scripts/               # Build helpers (Windows + Linux)
├─ src/                   # GDExtension/native backend
└─ extern/godot-cpp/      # Submodule required for builds

Quick start (Windows)

1. Clone the repo and fetch submodules:

   git clone https://github.com/duan-c/Multi-Mouse.git
   cd Multi-Mouse
   git submodule update --init --recursive


2. Build the extension DLL via PowerShell:

   pwsh ./scripts/build_windows.ps1 -Target template_debug


   This compiles godot-cpp, builds the native extension, and drops the DLL into addons/multi_mouse/bin/win64/.
3. Open demo/project.godot (or your own project), enable the plugin under Project → Project Settings → Plugins, and add a MultiMouse node to the scene where you want raw input.
4. In that scene’s script, wire it up:

   @onready var multi_mouse: MultiMouse = $MultiMouse

   func _ready():
       multi_mouse.attach_to_window(0) # bind to the main window
       multi_mouse.enable()
       multi_mouse.motion.connect(_on_motion)

   func _on_motion(event: InputEventMouseMotion) -> void:
       print("Mouse", event.device, "moved", event.relative)


Quick start (Linux)

Dependencies: cmake, ninja or GNU Make, scons, a C/C++ toolchain, and the X11 + Xi development headers. On Ubuntu/Debian:

sudo apt install build-essential python3-pip scons cmake libx11-dev libxi-dev

1. Clone the repo and submodules (same as Windows).
2. Build the debug godot-cpp and native library:

   ./scripts/build_linux.sh


3. Build the release variant:

   TARGET=template_release ./scripts/build_linux.sh


   Each run drops libmulti_mouse.linux.<target>.x86_64.so into addons/multi_mouse/bin/linux/ so the add-on can consume it immediately.
4. Open demo/project.godot, enable the plugin, and run any of the scenes.

Runtime notes (Linux)

• The backend uses ManyMouse (zlib license). By default it tries the XInput2 driver so normal users don’t need /dev/input access.
• To force the evdev backend (one device per /dev/input/event* node), export MANYMOUSE_NO_XINPUT2=1 before launching Godot. You’ll need read access to /dev/input/event* (run Godot as root, add yourself to the input group, or drop in a udev rule).
• Some VMs expose a single virtual pointer that XInput2 splits into “motion” and “button” slaves. If you see clicks coming from a different device ID, switch to the evdev backend as described above. On real hardware with two USB mice you’ll get one device ID per physical mouse.

Demos

Both demos live inside demo/project.godot and have their own README files.

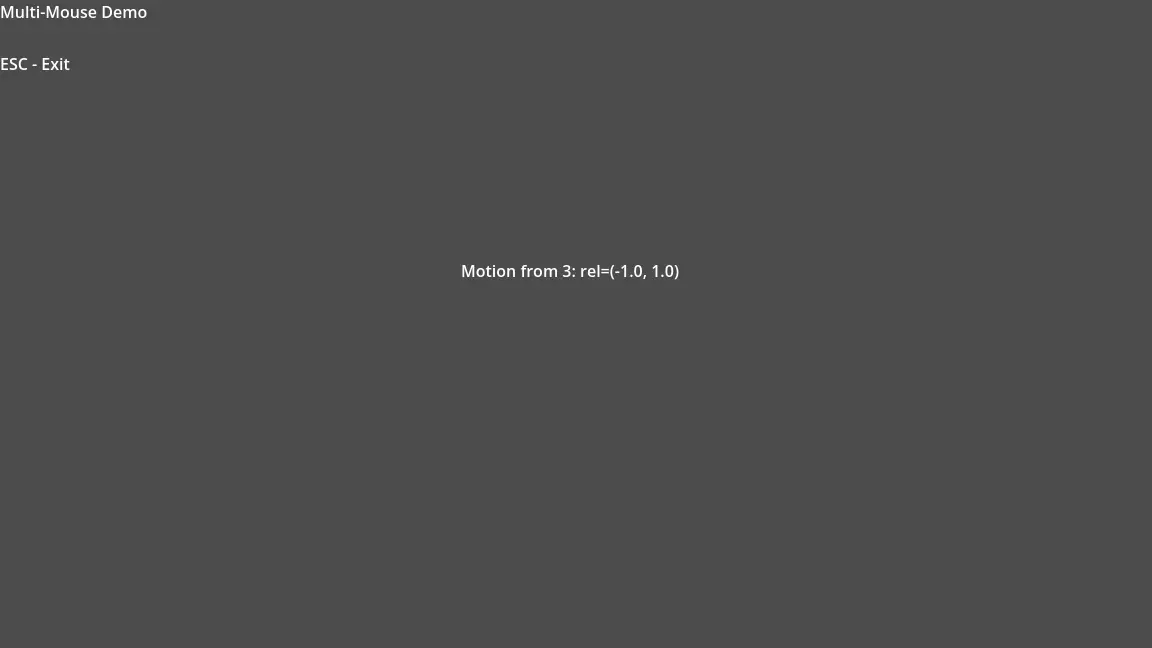

• Simple demo (demo/simple)
  • Shows the bare-minimum integration: attach the node, print motion/button events, quit with Esc.
• Pong demo (demo/pong)
  • Local multiplayer built entirely with Multi-Mouse input. The first mouse to left-click claims the left paddle, the first right-click claims the right paddle, and both players can rally immediately. Esc exits.
• Slime demo (demo/slime)
  • A physics net you can poke with one or many mice. Press 1 for a radial mesh, 2 for a grid, C to toggle springs/connections, and N to toggle the node overlay. Holding multiple buttons lets you “push harder”, and the mesh_texture export makes it easy to drop in any tileable membrane art.

Default slime membrane texture: “Handpainted tileable textures 512×512 – ooz_slime.png” by DeadKir (CC0) via OpenGameArt.

Building

• Windows – use scripts/build_windows.ps1. It runs SCons for godot-cpp, configures CMake, and copies the resulting multi_mouse.dll into the plugin.
• Linux – scripts/build_linux.sh mirrors the same steps (godot-cpp + CMake) and drops libmulti_mouse.linux.<target>.x86_64.so into the add-on.

Roadmap

• ✅ Windows Raw Input backend with hotplug + per-device events
• ✅ Linux backend (ManyMouse) with prebuilt .so binaries
• ✅ Drop-in MultiMouse node + Simple/Slime/Pong demos
• 🔄 Better diagnostics UI, logging, and asset-library packaging
• 🔜 macOS backend (hidmanager/hidutilities) and broader driver coverage

License

MIT
