Scene Paletter

A Godot 4.5 editor plugin for rapid scene placement using customizable palettes. Perfect for level design, prototyping, and any workflow requiring frequent scene instantiation.

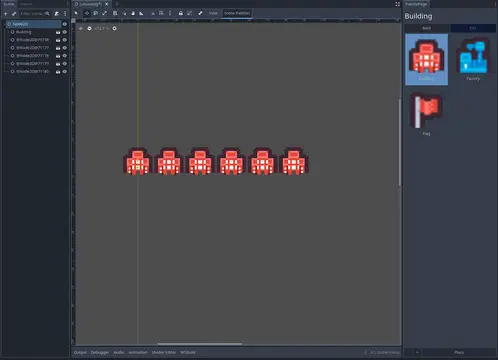

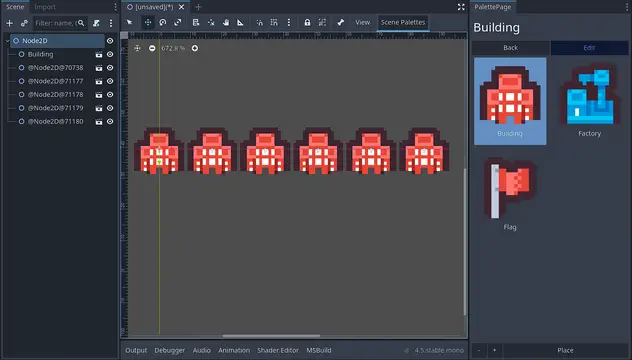

Quick scene placement with automatic position extrapolation

Note: Demo uses assets from Kenney Tiny Battle Pack (Creative Commons CC0).

---

Features

• 🎨 Multiple Palettes - Organize scenes into collections for different workflows
• 🔄 2D & 3D Support - Seamlessly handles both Node2D and Node3D scenes
• 📍 Smart Placement - Automatic position extrapolation based on previously placed nodes
• 👁️ Live Previews - Real-time preview generation for all palette scenes
• ⚡ Fast Workflow - Keyboard shortcuts and streamlined UI for rapid placement
• 🛠️ Easy Management - Add, remove, and organize scenes with intuitive controls
• 📝 Fully Documented - Complete XML documentation for all classes and methods

---

Installation

From Godot Asset Library (Recommended)

1. Open Godot Editor
2. Go to AssetLib tab
3. Search for "Scene Paletter"
4. Click Download → Install
5. Enable the plugin in Project Settings → Plugins

Manual Installation

1. Download the latest release from Releases
2. Extract the addons/scene_paletter folder to your project's addons/ directory
3. Enable the plugin in Project Settings → Plugins

---

Quick Start

Creating Your First Palette

1. Open the Plugin

   • After enabling, Scene Paletter appears as a dock in the editor
   • Default location: Bottom panel or right dock area

2. Create a Palette

   • Click the "Create Palette" button
   • Give it a descriptive name (e.g., "Level Objects", "Enemies", "Props")

3. Add Scenes

   • Click "Add Scenes" button
   • Select .tscn files from your project
   • Preview images generate automatically

4. Start Placing

   • Select a scene from your palette
   • Click "Place" to instantiate it in the editor
   • Each placement automatically calculates the next position based on the previous two placements

Placement Behavior

First placement: Uses parent node's position
Second placement: Uses first node's position
Third+ placement: Extrapolates position using: position = 2 × last - previous

This creates predictable, evenly-spaced placement perfect for laying out level elements.

---

Usage

Managing Palettes

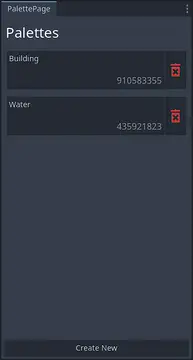

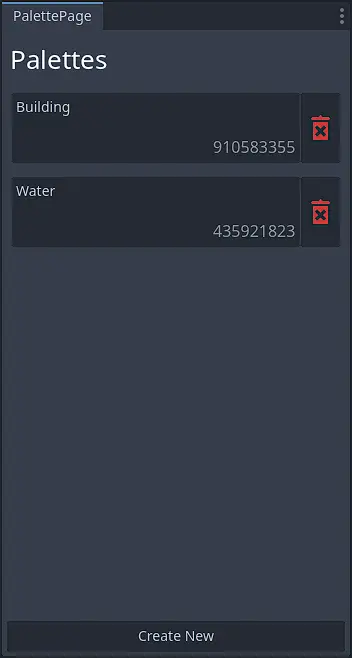

Create Palette

• Click "Create Palette" on the palette selection page
• Automatically assigns a unique ID

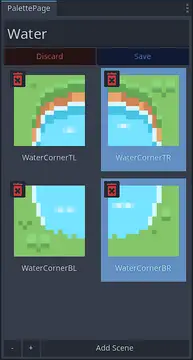

Edit Palette

• Select a palette → Click "Edit"
• Rename, add, or remove scenes
• Multi-select scenes for batch deletion

Delete Palette

• Click the delete button next to a palette
• Confirms before deletion

Placing Scenes

Basic Placement

1. Select a palette
2. Click a scene to select it
3. Click "Place" button (or use keyboard shortcut)
4. Scene instantiates at calculated position

Advanced Tips

• Select a parent node before placing to control hierarchy
• Place under 2D/3D scene roots for proper type handling
• Placed nodes automatically get proper owner assignment for scene saving

Customization

Grid Layout

• Use +/- buttons to adjust column count
• Configured in plugin.cfg:

  [ui]
  min_columns = 1
  max_columns = 6
  columns = 2

Preview Settings

• Adjust preview resolution and transparency:

  [ui]
  preview_resolution_x = 256
  preview_resolution_y = 256
  preview_2d_transparent = true
  preview_3d_transparent = false

---

Configuration

Edit addons/scene_paletter/plugin.cfg to customize:

[file]
palette_path = "res://addons/scene_paletter/palettes/"
file_extension = ".json"
id_start = 10000
id_end = 99999

[page]
pages = {...}  # Internal page definitions
widgets = {...}  # Internal widget definitions

[ui]
min_columns = 1
max_columns = 6
columns = 2
preview_resolution_x = 256
preview_resolution_y = 256
preview_margin_x = 10.0
preview_margin_y = 10.0
preview_2d_transparent = true
preview_3d_transparent = false

Configuration Options

Option	Description	Default
palette_path	Directory where palettes are saved	res://addons/scene_paletter/palettes/
file_extension	Palette file extension	.json
id_start / id_end	Range for unique palette ID generation	10000 - 99999
min_columns / max_columns	Grid column constraints	1 - 6
columns	Default column count	2
preview_resolution_x/y	Preview image size	256x256
preview_margin_x/y	Camera margin multiplier for previews	1.05
preview_2d/3d_transparent	Transparent preview backgrounds	true / false

---

Architecture

Built using a modular architecture with clear separation of concerns:

Scene Paletter/
├── Core/                   # Base classes and utilities
│   ├── Page<T>.cs              # Generic page base class
│   ├── PageDock.cs             # Page container management
│   └── ExceptionHandler.cs     # Centralized error handling
│
├── Management/             # System management
│   ├── ConfigLoader.cs         # Configuration loading
│   ├── DockManager.cs          # UI dock management
│   └── SceneLoader.cs          # Scene resource loading
│
├── Pages/                  # UI pages
│   ├── PalettePage.cs          # Palette selection
│   ├── PlacingPage.cs          # Scene placement
│   └── EditingPage.cs          # Palette editing
│
├── Widgets/                    # Reusable UI components
├── Tools/                      # Utility classes
└── Plugin.cs                   # Main plugin entry point

Key Design Patterns

• Generic Page System: Type-safe data passing between pages
• Centralized Error Handling: Non-throwing error logging via ExceptionHandler
• Resource Management: Proper disposal and lifecycle management
• Preview Caching: Asynchronous preview generation with caching

---

Extending the Plugin

Creating Custom Pages

using Addons.ScenePaletter.Core;

public struct MyPageData {
    public string someData;
}

[Tool]
public partial class MyPage : Page<MyPageData>
{
    public override void Initialize()
    {
        // Access data via this.data
        // Access plugin via this.plugin
        // Access dock via this.dock

        Title = "My Custom Page";
        // ... setup your UI
    }
}

Add to plugin.cfg:

[page]
pages = {
    "MyPage": "uid://your_scene_uid"
}

Adding Configuration Sections

1. Add properties to ConfigLoader.cs
2. Create a LoadYourSection() method
3. Call it from Init() inside the SafeExecute block
4. Add corresponding section to plugin.cfg

See ConfigLoader.cs for examples.

---

Troubleshooting

Plugin doesn't appear after enabling

• Restart Godot Editor
• Check console for error messages
• Verify plugin.cfg exists and is valid

Scenes don't place correctly

• Ensure you're placing under a Node2D or Node3D parent
• Check that selected scenes match the parent type (2D → 2D, 3D → 3D)
• Verify the edited scene root is valid

Previews not generating

• Check console for resource loading errors
• Verify scene paths in palette are valid UIDs
• Ensure preview resolution settings are reasonable (<1024px)

Palettes not saving

• Check write permissions for palette_path directory
• Verify file_extension setting in config
• Look for serialization errors in console

---

Development

Built in 1 Month as a learning project and for building a template to easily build plugins.

Tech Stack

• Language: C# (Godot 4.5)
• Architecture: Modular, documented, extensible
• Error Handling: Comprehensive logging without exceptions
• Preview System: Async generation with caching

Building from Source

git clone https://github.com/Flopper907/Scene_Paletter.git
cd Scene_Paletter
# Copy addons/scene_paletter to your Godot project

Contributing

Contributions welcome! Please:

1. Fork the repository
2. Create a feature branch
3. Follow existing code style and documentation patterns
4. Test thoroughly in Godot 4.5
5. Submit a pull request

---

License

MIT License - see LICENSE file for details.

---

Acknowledgments

• Built with Godot Engine
• Demo screenshots use Kenney Tiny Battle Pack (Creative Commons CC0)
• Inspired by palette-based workflows in level editors

---

Links

• Asset Library: Scene Paletter on Godot Asset Library (link after publishing)
• Issues: Report bugs or request features
• Discussions: Ask questions or share workflows

---

Made with ❤️ by Flopper907

---
