Spinner
_{Simple but configurable process status indicator node, for Godot}

Adds new Range control Spinner, an all-purpose process indicator. Use to provide feedback on ongoing processes - threads, network requests, timers, etc.

Features

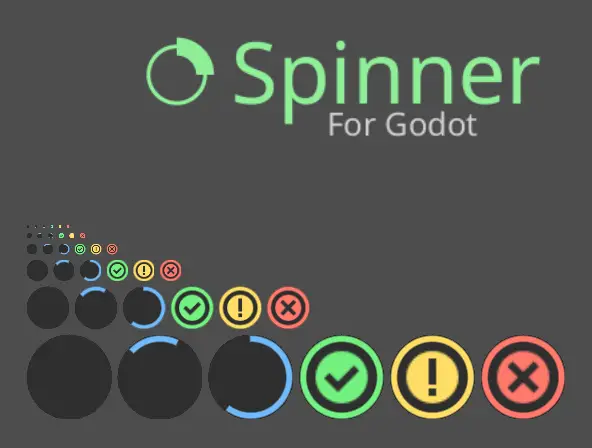

• 5 statuses
  • EMPTY for a process that hasn't started
  • SPINNING for indeterminate progress, such as a network request
  • PROGRESSING for determinate progress, such as a timer or download with known message body size
  • SUCCESS for a process that has completed successfully
  • WARNING for a process that has completed successfully with warnings
  • ERROR for a process that has errored out
• Can use custom icons, with defaults taken from Godot's own icons
• Option to use no icon and fills with status color instead
• Configurable spinner/border width and speed
• Configurable colors and option to use editor theme

Installation

Install via the AssetLib tab within Godot by searching for Spinner

Usage

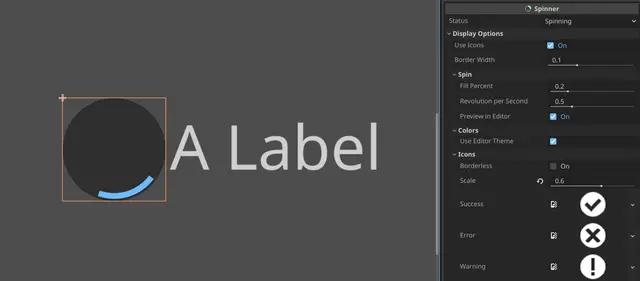

Add the Spinner node to your scene. All options update a live preview in the editor. All options are documented in the Inspector panel. If anything isn't clear enough there, open an issue.

Basic Usage

Set status to the desired status indication setting. Spinner is a range node, and can have its min_value, max_value and value updated accordingly, but those values only affect its border fill when status is Status.Progressing.

To set value to a new value and status to Status.Progressing at the same time, use set_progressing(value). This function can be connected to a signal for easy updates, but be aware that when value == max_value Spinner will not automatically update to Status.SUCCESS, that has to be set separately.

Borderless Icons

If you set icon_borderless, you probably also want to set icon_scale to 1.

Example: Watching an HTTPRequest

A very basic implementation.

@onready var spinner : Spinner = $Spinner
@onready var http_request : HTTPRequest = $HTTPRequest

func _ready() -> void:
    var error := http_request.request("https://github.com/godotengine/godot/releases/download/4.3-stable/godot-4.3-stable.tar.xz")
    if error != OK:
        spinner.status = Spinner.Status.ERROR
    http_request.request_completed.connect(_on_request_completed)

func _process(_delta: float) -> void:
    if http_request.get_body_size() > 0 and http_request.get_http_client_status() != HTTPClient.STATUS_DISCONNECTED:
        spinner.max_value = http_request.get_body_size()
        spinner.set_progressing(http_request.get_downloaded_bytes())

func _on_request_completed(
    result: int,
    response_code: int,
    headers: PackedStringArray,
    body: PackedByteArray
) -> void:
    spinner.status = Spinner.Status.SUCCESS

The Future

I primarily intend to use this to watch network requests, thread execution, etc. I am considering bundling extended classes which do this as-expected and have optional labels, but in its current state it is fairly simple to hook up to these manually. Let me know if there's interest in the following (or other) pre-built solutions:

• HTTPRequestSpinner
• ThreadSpinner
• ValueSpinner
  • Connect to any value_changed-type Signal, auto-SUCCESS upon completion)

The main thing holding me back from including this is it feels a bit like clutter and any plugin-side implementation should be really robust.

Let me know if there's interest!
