Procedural Pixel Art Tree Generator for Godot 4

A single @tool script that generates procedural pixel art trees, crystals, corals, cacti, and more — directly in the Godot editor. No external dependencies. Just drop it in your project.

Features

Trunk

• Random height/width: min/max ranges for natural variation across instances
• Tapering with configurable curve (linear, fast taper, stays thick)
• Quadratic curve and sinusoidal waves (vines, twisted trunks)
• Profile shaping: bulge (baobab), rings (bamboo, palm), roughness (rocks, stalagmites)
• Texture support: single or multi-texture (birch bark, etc.)
• Gradient shading: same positional gradient + hue shift as foliage applied to trunk

Branches

• Leonardo rule with recursive sub-branches (configurable depth)
• Solid w*w rendering per segment (no staircase artifacts)
• Directional shading perpendicular to branch direction (adapts at elbows)
• Draw order toggle: behind or in front of trunk
• Zone control: start/end ratio on trunk, anchor inset depth
• Taper curve: same as trunk, configurable per branch
• Rounding: square to circular cross-section (Chebyshev to Euclidean blend)
• Edge shading: symmetric light/dark for crystal/cylinder effects
• Elbow with angle: bend at configurable point, second segment follows the configured angle
• Per-branch hue shift: every branch tip gets the same warm hue regardless of Y position
• Glow: halo around trunk + branches with real PointLight2D

Foliage

• Procedural blobs (random walk) or custom leaf textures
• 4 canopy shapes: round (oak), triangular (pine), flat (acacia), columnar (cypress)
• Vertical gradient + hue shifting (3-color palette, pro pixel art look)
• Edge scatter for organic silhouette
• Spatial hash grid for consistent leaf spacing
• Crown fill, branch density, and trunk leaf controls

Rendering

• Baked textures at runtime: 7 textures (1 trunk + 3 bg leaf bands + 3 fg leaf bands) — only 7 draw calls instead of hundreds
• Wind sway with player interaction + editor preview animation toggle
• Shading variation: per-instance random offset on gradient/hue shift for natural variety
• Configurable outline (color, thickness)
• Light rays through the canopy
• Screen culling via VisibleOnScreenNotifier2D
• Falling leaves particle support (optional CPUParticles2D child)

Quick Start

1. Copy ProceduralTree.gd into your Godot 4 project
2. Create a new Node2D scene and attach the script
3. Tweak parameters in the Inspector — everything updates in real-time

Or open the included procedural_tree.tscn scene directly.

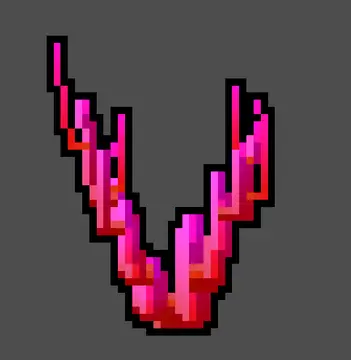

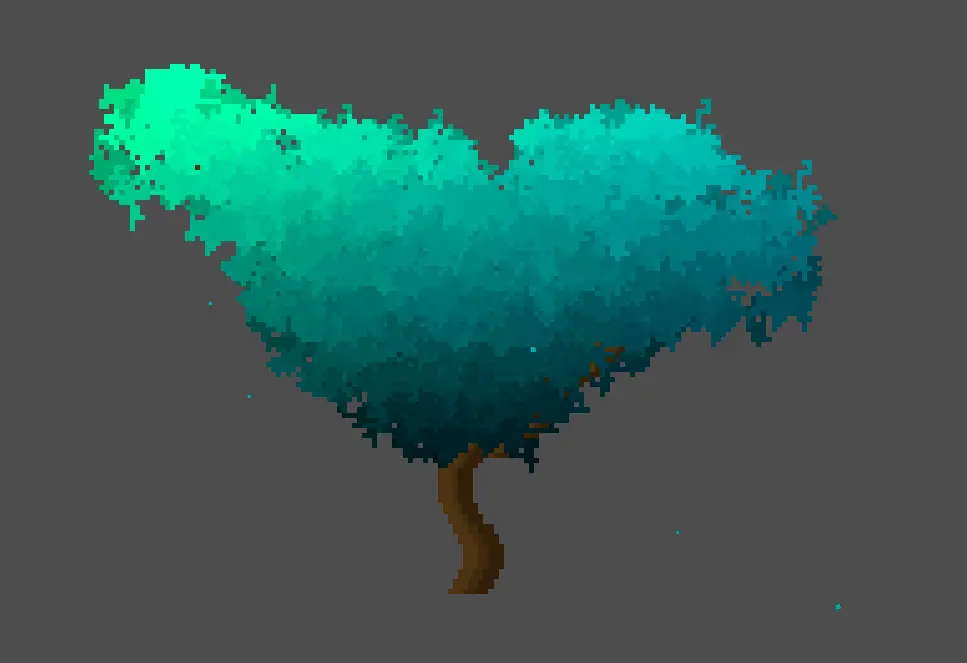

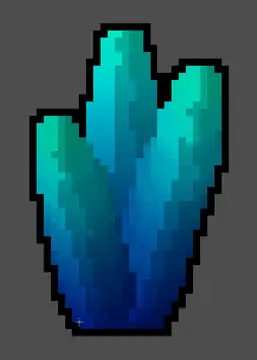

What Can You Make?

Parameters Overview

The script exposes 50+ parameters organized in groups in the Inspector:

• Tronc (Trunk) — height, width, tapering, curve, waves, profile, colors, texture
• Branches — count, length, angle, width, depth, zone, taper, rounding, glow
• Feuillage (Foliage) — textures, radius, density, canopy shape, gradient, hue shift, scatter
• Rendu (Rendering) — outline, baking, wind sway, light rays, seed

Every parameter has a setter that regenerates the tree in real-time in the editor.

Requirements

• Godot 4.3+ (tested on 4.4 and 4.6)
• No plugins, no dependencies, no autoloads
• Works with any renderer (Forward+, Mobile, Compatibility)

Tips

• Set texture_filter to Nearest in your project settings for crisp pixel art
• Use tree_tint with a darker color for background trees (parallax depth)
• Add a CPUParticles2D child named "FallingLeaves" for leaf particle effects
• The seed parameter (0 = use position) ensures trees are unique but deterministic
• Disable shadow_enabled on the generated PointLight2D for better performance

License

MIT — use it however you want, credit appreciated.
