Logitech G29 Godot Addon (Beginner Guide)

Input nodes for Logitech G29 wheel + pedals + shifter in Godot 4.

This addon gives you ready-made nodes that emit clear signals like steering_changed, throttle_changed, and gear_1_pressed, so you do not need to manually map raw joypad button IDs.

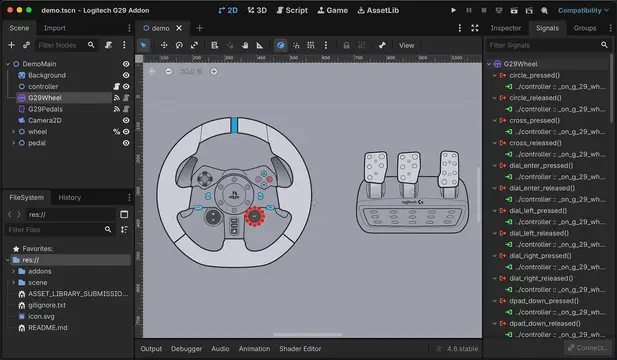

The demo scene visualizes wheel and pedal input. Use it as your reference for a "known good" setup.

Overview

What this project provides

• G29Wheel (addons/logitech_g29/scripts/G29Wheel.gd)
• G29Pedals (addons/logitech_g29/scripts/G29Pedals.gd)
• G29Shifter (addons/logitech_g29/scripts/G29Shifter.gd)
• G29WheelShifter (addons/logitech_g29/scripts/G29WheelShifterPriority.gd) for wheel+dpad/shifter overlap cases

How it works

• Each node auto-picks a joypad device (prefer_logitech_g29 + device_id).
• Each node reads raw Godot joypad input every frame.
• Nodes emit clean signals for gameplay logic.
• G29Pedals also supports runtime pedal-axis remapping.

Requirements

• Godot: 4.6 (detected from project.godot features). The scripts are written for Godot 4.x APIs.
• Hardware: Logitech G29 wheel. Optional: Logitech Driving Force Shifter.
• Platform/driver: any platform where Godot sees the wheel as a joypad.

Installation

1. Copy addons/logitech_g29 into your Godot project.
2. Open the project in Godot.

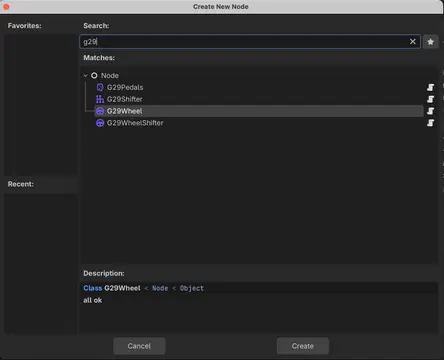

3. In your scene, add nodes by searching for G29 in the Add Node dialog.

Look for G29Wheel, G29Pedals, G29Shifter, and G29WheelShifter in the node search.

Quick Start (Fastest Way)

1. Open scene/demo.tscn.
2. Connect your G29 before pressing Play.
3. Press Play.
4. Turn the wheel and press buttons/pedals.

What you should see:

• Wheel rotation follows steering_changed.
• Wheel button sprites brighten when pressed.
• Pedal sprites darken/brighten based on pedal travel.

Step-by-Step Setup (Mirrors scene/demo.tscn + scene/controller.gd)

This section follows the same workflow as the included demo.

1. Create a Node2D scene (demo root is Node3D of type Node2D).
2. Add child node G29Wheel.
3. Add child node G29Pedals.
4. Add child node controller (type Node2D) and attach scene/controller.gd (or your own script).
5. Add visual nodes (sprites) for wheel/pedal parts.
6. In controller.gd, cache nodes with @onready and unique names (the demo uses %Name lookups).
7. Connect signals from G29Wheel and G29Pedals to controller.gd methods.
8. In callbacks:
   • steering_changed(degrees) -> rotate wheel visual (wheel.rotation_degrees = degrees).
   • *_pressed/*_released -> change sprite modulate.
   • throttle_changed/brake_changed/clutch_changed -> update pedal sprite brightness by value.

Demo-style minimal script pattern:

extends Node2D

@onready var wheel_visual: Node2D = %wheel

func _ready() -> void:
    $G29Wheel.steering_changed.connect(_on_steering_changed)
    $G29Wheel.cross_pressed.connect(_on_cross_pressed)
    $G29Wheel.cross_released.connect(_on_cross_released)

    $G29Pedals.throttle_changed.connect(_on_throttle_changed)

func _on_steering_changed(degrees: float) -> void:
    wheel_visual.rotation_degrees = degrees

func _on_cross_pressed() -> void:
    %X.modulate = Color(2.0, 2.0, 2.0)

func _on_cross_released() -> void:
    %X.modulate = Color(1.0, 1.0, 1.0)

func _on_throttle_changed(value: float) -> void:
    %Throttle.modulate = Color(1.0 * (1.0 - value), 1.0 * (1.0 - value), 1.0 * (1.0 - value))

Node Guide: Wheel (G29Wheel)

What it does

• Reads steering axis.
• Converts raw axis to wheel degrees (wheel_range_degrees).
• Emits press/release signals for wheel buttons, D-pad, paddles, and dial.

This is the Wheel Inspector panel. Confirm device selection, steering axis, and debug options.

Add to scene

1. Add node G29Wheel.
2. Keep default settings first.
3. Connect signals to your gameplay/controller script.

Inspector options

Option	Type	Default	What it controls	Beginner tip
prefer_logitech_g29	bool	true	Prefers devices with G29/Logitech in joypad name.	Keep true unless you need manual device routing.
device_id	int	-1	Selected Godot joypad device index.	Leave as -1; script auto-picks at runtime.
wheel_range_degrees	float	900.0	Max wheel lock-to-lock range used for degree conversion.	Keep 900 for real G29 feel.
steering_axis	JoyAxis	JOY_AXIS_LEFT_X	Joy axis used for steering read.	Change only if your OS/driver maps differently.
debug_print	bool	true	Prints steering/button debug logs.	Turn off after setup to reduce console noise.
debug_steering_threshold	float	0.5	Minimum degree change before printing steering logs.	Increase for less spam, lower for finer debugging.

Signals

Signal	Parameter type(s)	When it fires / use
steering_changed(degrees)	float	Steering degree changed. Use for vehicle steering visuals/logic.
steering_raw_changed(value)	float	Raw steering axis changed (-1..1). Use for custom filtering.
cross_pressed	none	Cross button pressed.
cross_released	none	Cross button released.
circle_pressed	none	Circle button pressed.
circle_released	none	Circle button released.
square_pressed	none	Square button pressed.
square_released	none	Square button released.
triangle_pressed	none	Triangle button pressed.
triangle_released	none	Triangle button released.
dpad_up_pressed	none	D-pad up pressed.
dpad_up_released	none	D-pad up released.
dpad_down_pressed	none	D-pad down pressed.
dpad_down_released	none	D-pad down released.
dpad_left_pressed	none	D-pad left pressed.
dpad_left_released	none	D-pad left released.
dpad_right_pressed	none	D-pad right pressed.
dpad_right_released	none	D-pad right released.
l1_pressed	none	L1/left paddle pressed.
l1_released	none	L1/left paddle released.
r1_pressed	none	R1/right paddle pressed.
r1_released	none	R1/right paddle released.
l2_pressed	none	L2 pressed.
l2_released	none	L2 released.
r2_pressed	none	R2 pressed.
r2_released	none	R2 released.
l3_pressed	none	L3 pressed.
l3_released	none	L3 released.
r3_pressed	none	R3 pressed.
r3_released	none	R3 released.
share_pressed	none	Share pressed.
share_released	none	Share released.
options_pressed	none	Options pressed.
options_released	none	Options released.
ps_pressed	none	PS button pressed.
ps_released	none	PS button released.
plus_pressed	none	Plus button pressed.
plus_released	none	Plus button released.
minus_pressed	none	Minus button pressed.
minus_released	none	Minus button released.
dial_right_pressed	none	Red dial turned right.
dial_right_released	none	Red dial right turn released.
dial_left_pressed	none	Red dial turned left.
dial_left_released	none	Red dial left turn released.
dial_enter_pressed	none	Red dial button pressed.
dial_enter_released	none	Red dial button released.

Functions / API

G29Wheel is mostly signal-driven.

Function	What it does	When to use	Short example
No public function required	Auto-connects and emits signals.	Standard usage.	Connect signals in _ready().

func _ready() -> void:
    $G29Wheel.steering_changed.connect(_on_steering_changed)

func _on_steering_changed(degrees: float) -> void:
    car_steer_target = degrees

Node Guide: Pedal (G29Pedals)

What it does

• Reads throttle, brake, clutch axes.
• Emits normalized values 0.0 -> 1.0.
• Emits raw values -1.0 -> 1.0.
• Supports runtime remapping via start_mapping_pedal().

This is the Pedals Inspector panel. Check axis mapping and inversion if pedal direction looks wrong.

Add to scene

1. Add node G29Pedals.
2. Connect throttle_changed, brake_changed, clutch_changed.
3. If values are reversed, use inversion toggles.

Inspector options

Option	Type	Default	What it controls	Beginner tip
prefer_logitech_g29	bool	true	Prefers Logitech/G29 device name when picking controller.	Keep enabled unless testing with unusual hardware IDs.
device_id	int	-1	Selected joypad index.	Leave auto unless you need a specific index.
throttle_axis	JoyAxis	JOY_AXIS_LEFT_Y	Axis used for throttle.	Remap only if throttle reads wrong axis.
brake_axis	JoyAxis	JOY_AXIS_RIGHT_X	Axis used for brake.	Check this first if brake is always on/off.
clutch_axis	JoyAxis	JOY_AXIS_RIGHT_Y	Axis used for clutch.	Change if clutch does not respond.
invert_throttle	bool	true	Inverts normalized throttle output.	Usually correct for G29 defaults.
invert_brake	bool	true	Inverts normalized brake output.	Toggle if brake increases when released.
invert_clutch	bool	true	Inverts normalized clutch output.	Toggle if clutch feels backward.
debug_print	bool	true	Prints normalized/raw updates and mapping messages.	Turn off after calibration.
debug_pedal_threshold	float	0.01	Min normalized delta before debug print.	Increase to 0.05/0.1 to reduce log spam.

Signals

Signal	Parameter type(s)	When it fires / use
throttle_changed(value)	float	Normalized throttle changed (0..1). Use for acceleration input.
brake_changed(value)	float	Normalized brake changed (0..1). Use for braking force.
clutch_changed(value)	float	Normalized clutch changed (0..1). Use for clutch/gear logic.
throttle_raw_changed(value)	float	Raw throttle axis changed (-1..1).
brake_raw_changed(value)	float	Raw brake axis changed (-1..1).
clutch_raw_changed(value)	float	Raw clutch axis changed (-1..1).
mapping_complete(pedal_name, axis_index)	String, int	Runtime pedal remapping found an axis and updated it.

Functions / API

Function	What it does	When to use	Short example
start_mapping_pedal(pedal_name: String) -> void	Enters mapping mode and waits for a strong axis input (abs(value) > 0.5) to bind pedal axis.	In keybind/settings menus.	g29_pedals.start_mapping_pedal("throttle")

func _ready() -> void:
    $G29Pedals.throttle_changed.connect(_on_throttle_changed)
    $G29Pedals.mapping_complete.connect(_on_mapping_complete)

func _on_remap_throttle_button_pressed() -> void:
    $G29Pedals.start_mapping_pedal("throttle")

func _on_throttle_changed(value: float) -> void:
    engine_input = value

func _on_mapping_complete(pedal_name: String, axis_index: int) -> void:
    print("Mapped %s to axis %d" % [pedal_name, axis_index])

Node Guide: Shifter (G29Shifter)

What it does

• Emits gear slot pressed/released signals for 1-6 + reverse.
• Includes debug scanner (print_debug_ids) to identify actual button IDs on your system.

Use node search to add G29Shifter. Reverse behavior depends on driver/OS mapping.

Add to scene

1. Add node G29Shifter.
2. Connect gear signals you need.
3. For reverse issues, enable print_debug_ids and observe console IDs.

Inspector options

Option	Type	Default	What it controls	Beginner tip
prefer_logitech_g29	bool	true	Prefers Logitech/G29-named joypad.	Keep enabled in most setups.
device_id	int	-1	Selected joypad index.	Leave auto first; override only if needed.
print_debug_ids	bool	true	Prints any changed button ID from 0-63 while shifting.	Great for diagnosing reverse/gear mismatch issues.

Signals

Signal	Parameter type(s)	When it fires / use
gear_1_pressed	none	Entered 1st gear slot.
gear_1_released	none	Left 1st gear slot.
gear_2_pressed	none	Entered 2nd gear slot.
gear_2_released	none	Left 2nd gear slot.
gear_3_pressed	none	Entered 3rd gear slot.
gear_3_released	none	Left 3rd gear slot.
gear_4_pressed	none	Entered 4th gear slot.
gear_4_released	none	Left 4th gear slot.
gear_5_pressed	none	Entered 5th gear slot.
gear_5_released	none	Left 5th gear slot.
gear_6_pressed	none	Entered 6th gear slot.
gear_6_released	none	Left 6th gear slot.
gear_reverse_pressed	none	Entered reverse slot (push down + reverse gate).
gear_reverse_released	none	Left reverse slot.

Functions / API

G29Shifter is signal-driven.

Function	What it does	When to use	Short example
No public function required	Auto-scans mapped gear button IDs and emits signals.	Standard gameplay logic.	Connect gear_* signals in _ready().

var current_gear: int = 0

func _ready() -> void:
    $G29Shifter.gear_1_pressed.connect(func(): current_gear = 1)
    $G29Shifter.gear_2_pressed.connect(func(): current_gear = 2)
    $G29Shifter.gear_reverse_pressed.connect(func(): current_gear = -1)

Optional Node: Wheel + Shifter Priority (G29WheelShifter)

Use this instead of G29Wheel when an external shifter causes D-pad overlap.

Extra inspector option (in addition to Wheel options):

Option	Type	Default	What it controls	Beginner tip
shifter_priority	bool	false	Ignores overlapping D-pad IDs (Down/Left/Right) so shifter input wins.	Turn this on when D-pad or gear signals fire together unexpectedly.

The rest of the signals/options match G29Wheel.

Demo Breakdown

Scene wiring (scene/demo.tscn)

• Root: Node2D scene.
• Input nodes: G29Wheel and G29Pedals are direct children of root.
• Controller node: controller (script: scene/controller.gd).
• Visual groups:
  • wheel Node2D with many button sprites.
  • pedal Node2D with Brake, Clutch, Throttle sprites.
• Signal connections:
  • Most wheel button pressed/released signals -> matching controller methods.
  • steering_changed -> _on_g_29_wheel_steering_changed.
  • Pedal normalized signals -> _on_g_29_pedals_*_changed.

Script behavior (scene/controller.gd)

• Caches all visual sprites with @onready and %UniqueName.
• Wheel callbacks:
  • Pressed: modulate = Color(2,2,2).
  • Released: modulate = Color(1,1,1).
  • Steering: rotates wheel visual in degrees.
• Pedal callbacks:
  • Uses Color(1-value, 1-value, 1-value) so stronger pedal press darkens visual.

This is a good “correct baseline” pattern: input node signals -> small callback methods -> update gameplay/visual state.

Troubleshooting / FAQ

The nodes do nothing when I press inputs

• Make sure the wheel is connected before running the scene.
• Check Inspector: device_id should not remain -1 during play.
• Keep prefer_logitech_g29 = true unless you intentionally want fallback behavior.
• Enable debug_print to see if values/signals are changing.

Steering works but pedals are backward

• Toggle invert_throttle, invert_brake, invert_clutch in G29Pedals.

Pedals are mapped to the wrong axes

• Use start_mapping_pedal("throttle" | "brake" | "clutch").
• Wait for mapping_complete signal.

Shifter and D-pad conflict

• Replace G29Wheel with G29WheelShifter.
• Enable shifter_priority.

Reverse does not trigger

• On physical shifter, press knob down while moving into reverse gate.
• Set print_debug_ids = true on G29Shifter and check console.
• If ID differs on your system, this indicates a driver/OS mapping difference.

Example Use Cases

1) Basic car steering + pedals

extends Node3D

@onready var wheel: G29Wheel = $G29Wheel
@onready var pedals: G29Pedals = $G29Pedals

var steer_input: float = 0.0
var throttle_input: float = 0.0
var brake_input: float = 0.0

func _ready() -> void:
    wheel.steering_changed.connect(_on_steering_changed)
    pedals.throttle_changed.connect(func(v): throttle_input = v)
    pedals.brake_changed.connect(func(v): brake_input = v)

func _on_steering_changed(degrees: float) -> void:
    # Convert from wheel degrees to a smaller gameplay steer range.
    steer_input = clamp(degrees / 450.0, -1.0, 1.0)

func _physics_process(_delta: float) -> void:
    # Replace with your own vehicle API.
    apply_steer(steer_input)
    apply_throttle(throttle_input)
    apply_brake(brake_input)

2) Manual transmission with shifter + clutch

extends Node

@onready var shifter: G29Shifter = $G29Shifter
@onready var pedals: G29Pedals = $G29Pedals

var current_gear: int = 0
var clutch_value: float = 0.0

func _ready() -> void:
    pedals.clutch_changed.connect(func(v): clutch_value = v)

    shifter.gear_1_pressed.connect(func(): _try_set_gear(1))
    shifter.gear_2_pressed.connect(func(): _try_set_gear(2))
    shifter.gear_3_pressed.connect(func(): _try_set_gear(3))
    shifter.gear_4_pressed.connect(func(): _try_set_gear(4))
    shifter.gear_5_pressed.connect(func(): _try_set_gear(5))
    shifter.gear_6_pressed.connect(func(): _try_set_gear(6))
    shifter.gear_reverse_pressed.connect(func(): _try_set_gear(-1))

func _try_set_gear(target: int) -> void:
    if clutch_value > 0.8:
        current_gear = target

3) Runtime pedal remap UI action

extends Control

@onready var pedals: G29Pedals = $G29Pedals

func _ready() -> void:
    pedals.mapping_complete.connect(_on_mapping_complete)

func _on_map_brake_pressed() -> void:
    pedals.start_mapping_pedal("brake")

func _on_mapping_complete(pedal_name: String, axis_index: int) -> void:
    %StatusLabel.text = "Mapped %s to axis %d" % [pedal_name, axis_index]
