UI Widget

A simple Godot plugin for commonly used UI elements. It was made as a quick way to create and extend settings semi automatically.

List of components and brieft explanation:

• UIWidget - parent made mostly for utility - extends BoxContainer. Shouldn't be used by itself.
  • UIBoolWidget - uses CheckButton.
  • UIColorPickerWidget - uses ColorPickerButton.
  • UINumberWidget - uses HSlider and a SpinBox. Shouldn't be used by itself.
    • UIIntWidget - extends UIFloatWidget casts to int.
    • UIFloatWidget - extends UINumberWidget casts to float.
  • UIListWidget - uses OptionButton can be used with or w/o texture.
  • UIVectorWidget - uses SpinBox elements to represent x, y, z, w. Shouldn't be used by itself.
    • UIVector2Widget - extends UIVectorWidget casts to Vector2.
    • UIVector3Widget - extends UIVectorWidget casts to Vector3.
    • UIVector4Widget - extends UIVectorWidget casts to Vector4.

UIWidget will automatically populate view_name and property_name from the name of the node and will do so when Node being renamed. Can be set manually and will reset on every node rename.

List of settings:

• Group Name - can be changed to a custom one. Group is set on _ready and on value change.
• Scene - you can create your own scene.
• Property Name - a String that is populated automatically on _ready and changed on node rename from the Editor. If set from Editor value will not be changed automatilally anymore. Made for utility and identification.
• View Name - same as Property Name but used for setting label.text.
• Debounce and Debounce Time - used to set debounce behaviour. Debounce - bool turns debounce on and off. Debounce Time - float debounce seconds.

Node specific settings:

For Number and Vector nodes:

• Min Value - a float minimum field value
• Max Value - a float maximum field value
• Step Value - a float step value

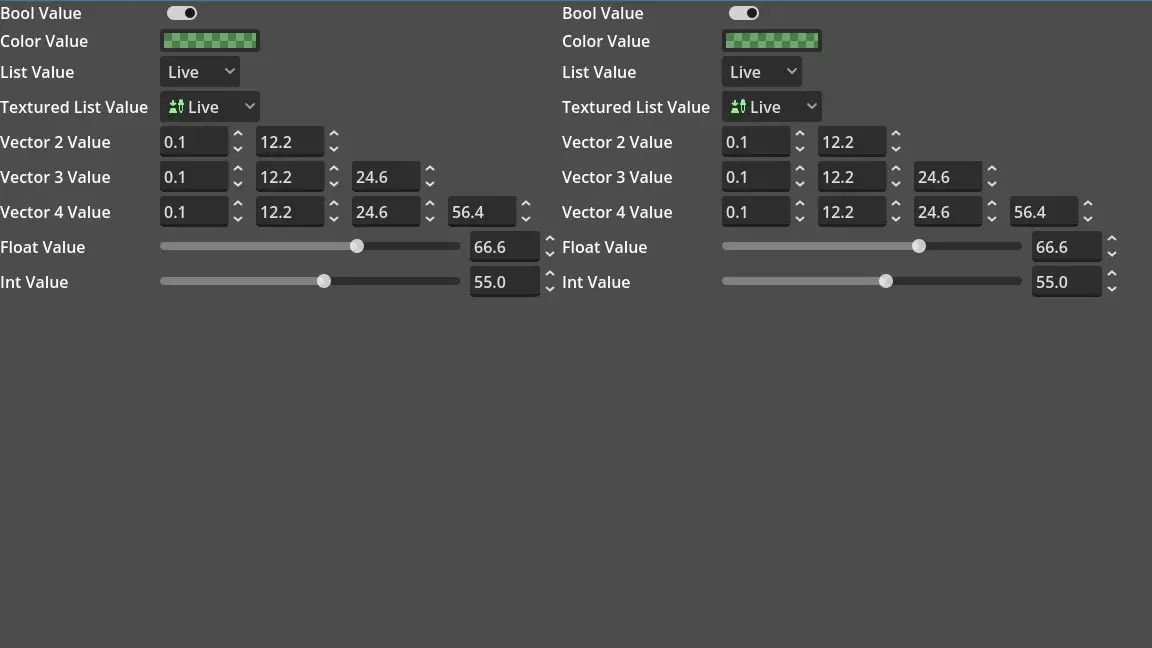

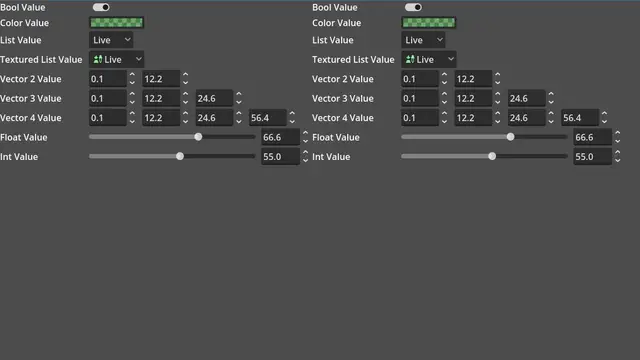

There is a test/showcase scene called ui_widget_test.tscn
