CS16 Source Menu Module

Runtime addon module for a Source/CS16 style menu. It is not an EditorPlugin and is not enabled in project.godot.

Architecture

The module is now fully node-based (no runtime UI generation):

• SourceMenuModule (source_menu_module.gd): orchestration + public API + relayed signals
• Boot (nodes/boot.gd)
• Boot/Services (nodes/services.gd)
• Boot/Services/Input (services/input_service.gd)
• Boot/Services/Audio (services/audio_service.gd)
• Boot/Services/Video (services/video_service.gd)
• Boot/Services/Game (services/game_service.gd)
• Boot/Services/Controls (services/controls_service.gd)
• App (nodes/app.gd): menu state + UI binding
• resources/source_menu_module_data.gd: data model (Resource)
• resources/source_menu_module_data_default.tres: module data preset
• App/MenuLayer/UIRoot: full static UI tree (Main / Options tabs / Credits)

Features

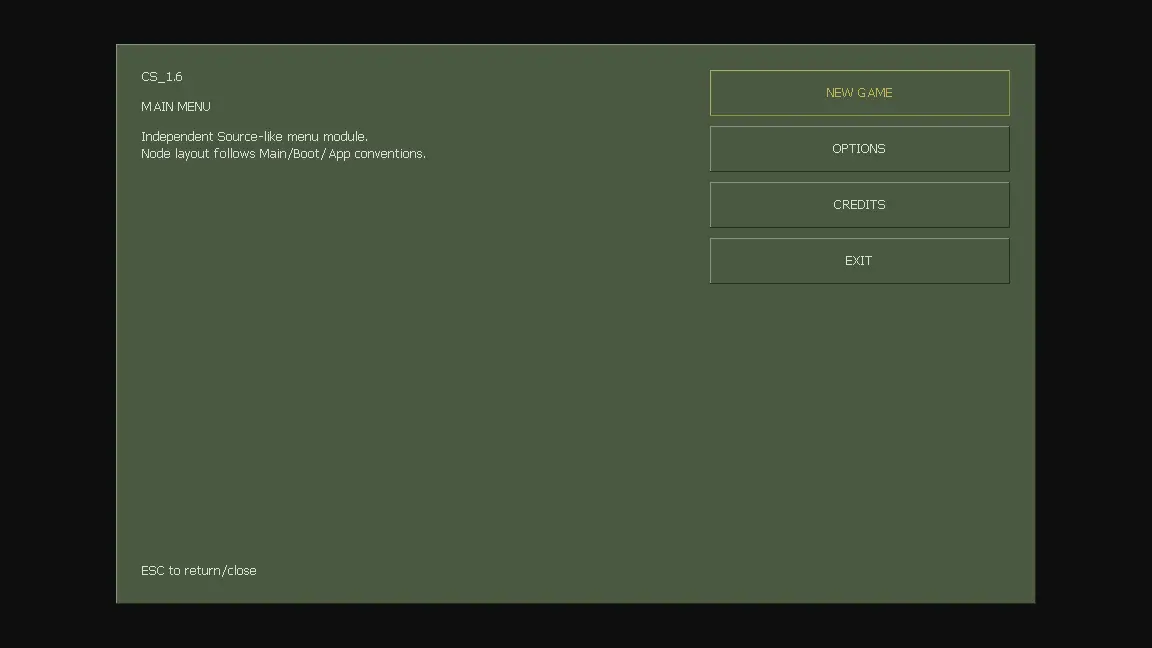

• Main menu: NEW GAME, OPTIONS, CREDITS, EXIT
• Options tabs: Controls, Inputs, Audio, Video, Game
• Input tab defaults: Move Forward, Move Backward, Move Left, Move Right, Jump, Run, Crouch
• Theme: res://ressources/themes/cs16_classic.theme
• Runtime functionality:
  • Input: real InputMap rebinding (play_char_* actions), with key capture in UI
  • Audio: applies to bus volumes (Master/Music/SFX/Voice if present)
  • Video: applies window mode, resolution (windowed/borderless), VSync, and optional shader-global gamma (cs16_gamma)
  • Controls: applies camera sensitivity/invert and maps hold toggles to PlayerCharacter.continious_*
  • Game: applies locale via TranslationServer and exposes settings metadata
• Persistence:
  • Saved to user://cs16_source_menu_settings.cfg
  • Auto-load on startup, auto-save on apply
• Data-driven defaults:
  • Runtime data/options are loaded from resources/source_menu_module_data_default.tres
  • Logic stays in scripts, editable data stays in .tres
• Public methods:
  • open_menu()
  • close_menu()
  • toggle_menu()
  • open_options_tab(name)
  • get_settings()
  • set_settings(values)
• Signals:
  • new_game_pressed
  • options_opened
  • options_closed
  • credits_pressed
  • exit_pressed
  • menu_closed
  • settings_applied(settings)

Usage

1. Instance res://addons/cs16_source_menu/scenes/source_menu_module.tscn in a scene.
2. Connect signals on SourceMenuModule to your game flow.
3. Configure exported vars on root:
   • start_open
   • close_with_escape
   • pause_tree_while_open
   • block_input_behind_menu
4. (Optional) Duplicate/edit resources/source_menu_module_data_default.tres to override module defaults/options without touching logic scripts.
