Spatial Audio Extended

An advanced, drop-in replacement for Godot's AudioStreamPlayer3D that adds physically-inspired, real-time spatial audio to your 3D games.

Version 2.4.0 · Godot 4.x · by danikakes Feel free to donate to my Paypal if you like what I make :)

Features

• Volume Attenuation — Multiple falloff curves (Linear, Logarithmic, Inverse, Natural Sound, and user-defined) with configurable inner and outer radii.

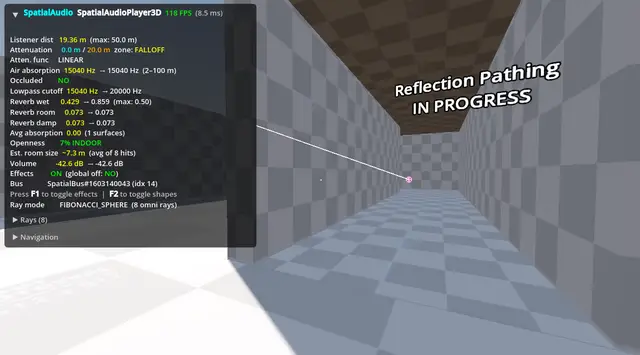

• Room Size Reverb — Omni-directional raycasts estimate room geometry and apply reverb automatically. Works in real time as the player moves between spaces.

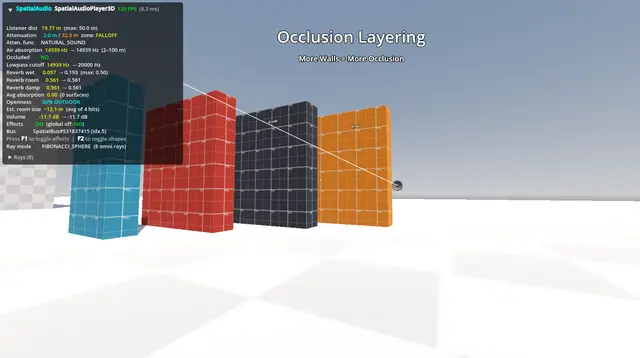

• Wall Occlusion — Multi-wall detection with material-based lowpass filtering and volume reduction. Sounds become progressively more muffled behind each wall.

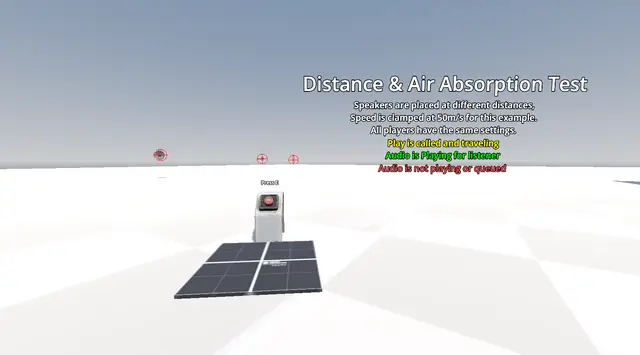

• Air Absorption — Distance-based high-frequency rolloff simulating how air attenuates sound over long distances.
• Sound Speed Delay — Realistic propagation delay for one-shot sounds. Fire a gunshot across a valley and hear it arrive a moment later.
• Acoustic Materials — Physics-based surface properties (absorption, scattering, transmission) with 11 built-in presets covering brick, concrete, carpet, glass, wood, metal, and more.

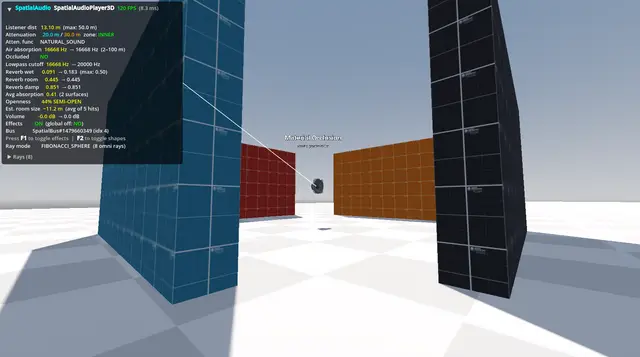

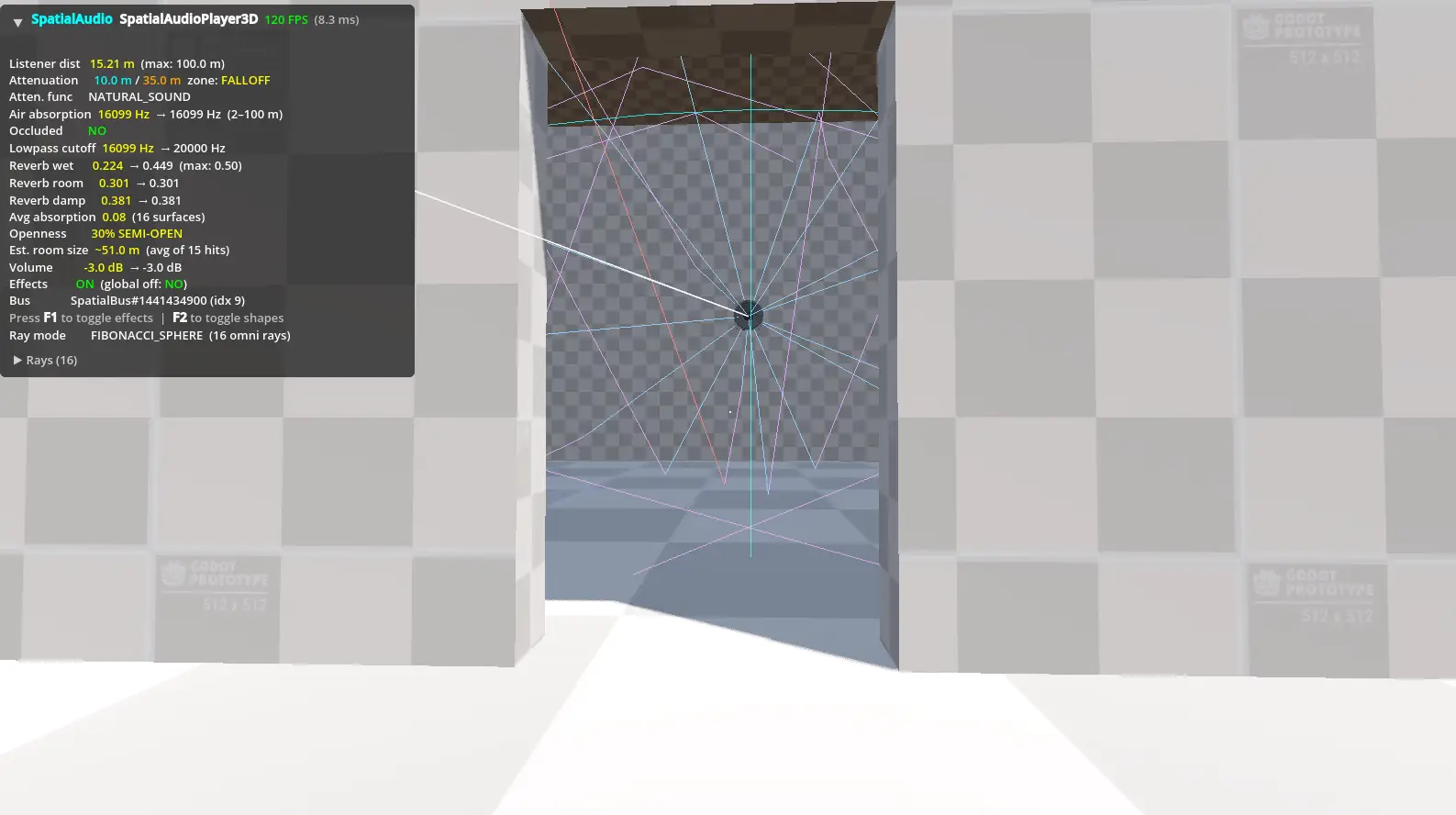

• Debug Overlay — On-screen HUD, in-editor ray visualisation, radius wireframes, and a live A/B effect toggle.
• Rich Signals — Zone transitions, occlusion events, reverb updates, air absorption changes, playback state, and diagnostic data.

Installation

From the Godot Asset Library:

1. Open your project and go to the AssetLib tab.
2. Search for Spatial Audio Extended and install it.
3. Go to Project → Project Settings → Plugins and enable Spatial Audio Extended.

Manual:

1. Copy the addons/danikakes.spatial_audio/ folder into your project's addons/ directory.
2. Enable the plugin in Project → Project Settings → Plugins.

Quick Start

Replace any AudioStreamPlayer3D in your scene with a SpatialAudioPlayer3D. All existing properties and method calls work identically — no code changes needed.

# No changes required. play(), stop(), is_playing() all work as before.
$MySpatialAudio.play()

To give surfaces acoustic properties, add an AcousticBody node as a direct child of any StaticBody3D, RigidBody3D, Area3D, or CSGShape3D, then assign one of the built-in material presets:

StaticBody3D  (concrete wall)
├── CollisionShape3D
├── MeshInstance3D
└── AcousticBody        <-- assign concrete.tres here

The plugin adds an "Add AcousticBody" button to the Inspector when a CollisionShape3D or CSGShape3D is selected, so you can skip the Add Node dialog.

Node Overview

Acoustic Material Presets

11 presets are included, based on real-world acoustic data:

brick · concrete · ceramic · carpet · glass · gravel · metal · plaster · rock · wood · generic

# Load from disk
var mat = load("res://addons/danikakes.spatial_audio/presets/concrete.tres")

# Or use a static constructor
var mat = AcousticMaterial.preset_concrete()

Signals

# Zone transitions
signal inner_radius_entered(listener)
signal inner_radius_exited(listener)
signal falloff_zone_entered(listener)
signal falloff_zone_exited(listener)
signal attenuation_zone_entered(listener)
signal attenuation_zone_exited(listener)

# Occlusion
signal audio_occluded(listener, wall_count)
signal audio_unoccluded(listener)
signal occlusion_changed(wall_count, cutoff_hz)

# Reverb / air absorption
signal reverb_updated(room_size, wetness, damping)
signal reverb_zone_changed(room_size, wetness)
signal air_absorption_updated(cutoff_hz)

# Playback
signal spatial_audio_playback_started()
signal spatial_audio_playback_stopped()
signal listener_distance_changed(distance)

Global Effect Toggle

Disable all spatial effects across every instance at once — useful for accessibility or performance modes:

SpatialAudioPlayer3D.set_global_effects_disabled(true)

Documentation

Full documentation is available in the Wiki:

• Installation
• Getting Started
• SpatialAudioPlayer3D Reference
• AcousticBody Reference
• AcousticMaterial Reference
• Material Presets
• Signals Reference
• Debug Tools
• Tips & Recipes

License

See LICENSE.
