Subtree Shader Applicator

SubtreeShaderApplicator is a helper node for pushing one material setup through an entire scene branch.

What it does

• For 2D, it assigns the same Material resource to every CanvasItem in the target subtree.
• For 3D, it can assign material_override, material_overlay, and/or a shared next_pass to every GeometryInstance3D in the target subtree.
• If target_root_path is empty, it targets this helper node's children.

What it does not do

• It does not combine a 2D subtree into one draw pass. If you need a single combined 2D shader pass, use Godot's CanvasGroup.
• It does not automatically watch runtime-spawned children. Call refresh_subtree() after adding nodes dynamically.
• A 3D next_pass is only preserved non-destructively for nodes that already have material_override or for MeshInstance3D surface materials. Other GeometryInstance3D types should prefer material_overlay.

Usage

1. Enable the plugin in Project > Project Settings > Plugins.
2. Add a SubtreeShaderApplicator node to your scene.
3. Leave target_root_path empty to target this node's children, or point it at any other subtree root.

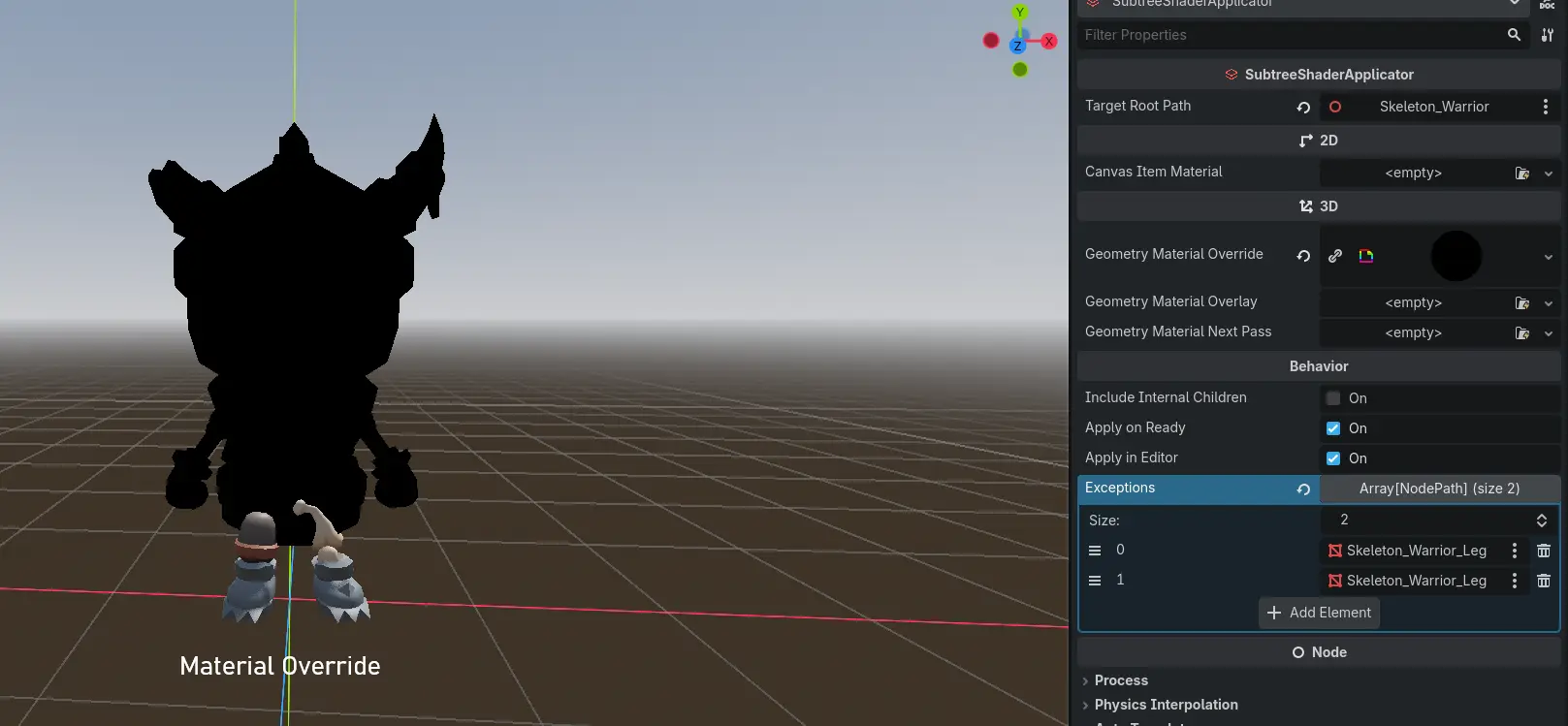

4. Set canvas_item_material for 2D, geometry_material_override for 3D replacement, geometry_material_overlay for 3D layering on top of the original material, or geometry_material_next_pass to append a 3D next pass without editing the original mesh materials.
5. The helper reacts to those fields automatically. Assigning a material applies it to the subtree, and clearing the field restores the cached original state for that effect type.
6. Leave apply_on_ready enabled if you want the configured materials to be re-applied automatically when the scene enters the tree at runtime.
7. Add any nodes to exceptions that should be excluded from material application. Excepted nodes and their entire subtrees are skipped, and their original materials are left untouched.

Outline workflow

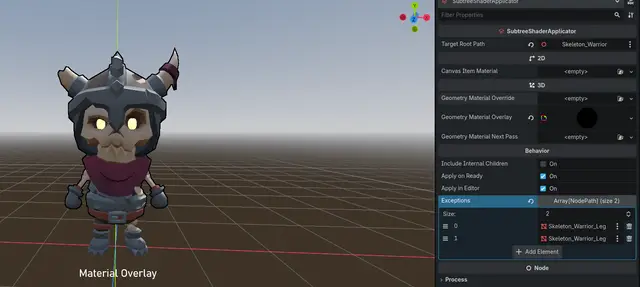

• For a character made of many MeshInstance3D parts, prefer geometry_material_overlay first. Godot renders overlays on top of the current material for the whole geometry, which is usually the cleanest non-destructive path for shield, hit-flash, and outline-style effects.

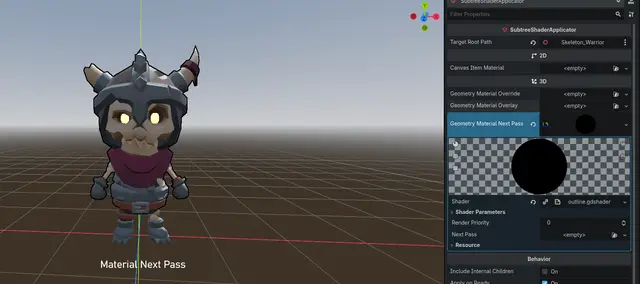

• Use geometry_material_next_pass when you specifically want a real extra material pass instead of an overlay. The addon duplicates the active material chain at the node level so the imported mesh materials are not modified.

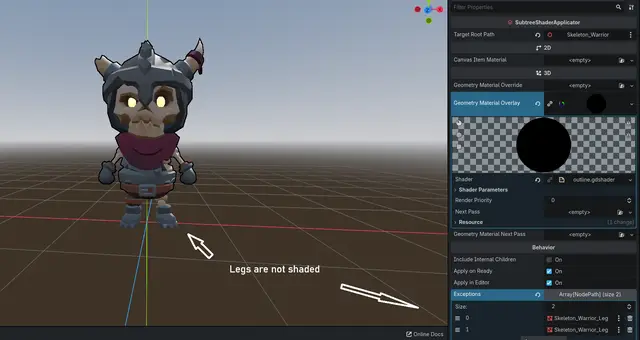

Exceptions

The exceptions array lets you exclude specific nodes from material application without removing them from the subtree.

• Any node listed in exceptions, along with its entire child hierarchy, is skipped when syncing materials.
• Excepted nodes have their original materials preserved (or restored if the exception is added after materials were already applied).
• Changes to the exceptions list take effect immediately — adding a node to exceptions restores its original materials, and removing it causes the shader to be applied on the next sync.
• Node paths in exceptions are resolved relative to the SubtreeShaderApplicator node, the same as target_root_path.

Global shader parameters

• If every affected node uses the same ShaderMaterial resource through this addon, editing that shared resource changes every node at once.
• From code, call set_canvas_shader_parameter(), set_geometry_overlay_shader_parameter(), set_geometry_next_pass_shader_parameter(), or set_all_assigned_shader_parameters() on the helper node.
• If you need scene-wide uniforms shared across multiple different materials, use ShaderGlobalsOverride or the RenderingServer.global_shader_parameter_* API with global uniform shader parameters.
