Extra Import Hints

A Godot plugin that adds extra import hints when importing blender assets.

Namely adds -rigidonly, -convrigidonly, and -trueconvcolonly import hints to ex pand options around physics bodies and collision shapes.

I have found these useful for separating blender objects into visual meshes and collision shapes without needing any extra steps after importing.

Added import hints

  • -rigidonly
    • Imports the object as a RigidBody3D, converting the mesh to a concave collision shape child.
    • Unlike Godot's -rigid, this does not add any visual mesh to the scene.
  • -convrigidonly
    • Similar to -rigidonly, but uses a convex collision shape instead.
  • -trueconvcolonly
    • Imports the object as a convex collision shape only
    • Unlike Godot's -convcol, this does not add a StaticBody3D node.
    • Useful as a child of another object to provide complex collision.

Installation

  1. Download the plugin to your project's addons/ directory

Intended Usage

  1. When working in Blender, add extra import hints to your objects' names
  2. When importing a Blender file, select the ExtraImportHints.gd script as the import script
  3. After importing, your objects will automatically be re-typed to the defined node types
  4. Any edits to the Blender file will be re-imported while retaining the node structure

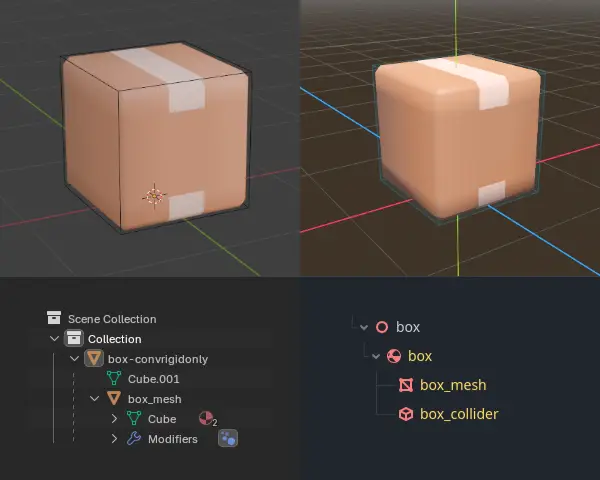

Example Blender object compositions

Rigid body with seperate concave collision + mesh

  • shipping_container-convrigidonly (converted to rigidbody + collider)
    • mesh (visual mesh)

Rigid body with multiple colliders + mesh

  • mallet-rigidonly (converted to rigidbody, can be an empty node)
    • mesh (visual mesh)
    • handle_collider-trueconvcolonly (converted to conv collider)
    • head_collider-trueconvcolonly (converted to conv collider)

License

MIT License

Contact

https://github.com/rllyy97/

A Godot plugin that adds extra import hints when importing blender assets.

Namely adds `-rigidonly`, `-convrigidonly`, and `-trueconvcolonly` import hints to ex
pand options around physics bodies and collision shapes.

I have found these useful for separating blender objects into visual meshes and collision shapes without needing any extra steps after importing.

Added import hints
- `-rigidonly`
- Imports the object as a `RigidBody3D`, converting the mesh to a concave collision shape child.
- Unlike Godot's `-rigid`, this does not add any visual mesh to the scene.
- `-convrigidonly`
- Similar to `-rigidonly`, but uses a convex collision shape instead.
- `-trueconvcolonly`
- Imports the object as a convex collision shape only
- Unlike Godot's `-convcol`, this does not add a `StaticBody3D` node.
- Useful as a child of another object to provide complex collision.

Installation
1. Download the plugin to your project's addons/ directory

Intended Usage
1. When working in Blender, add extra import hints to your objects' names
2. When importing a Blender file, select the `ExtraImportHints.gd` script as the import script
3. After importing, your objects will automatically be re-typed to the defined node types
4. Any edits to the Blender file will be re-imported while retaining the node structure

Example Blender object compositions

> Rigid body with seperate concave collision + mesh
- shipping_container-convrigidonly (converted to rigidbody + collider)
- mesh (visual mesh)

> Rigid body with multiple colliders + mesh
- mallet-rigidonly (converted to rigidbody, can be an empty node)
- mesh (visual mesh)
- handle_collider-trueconvcolonly (converted to conv collider)
- head_collider-trueconvcolonly (converted to conv collider)


License
MIT License

Contact
https://github.com/rllyy97/
