Nylon

An asset by mashumafi
The page banner background of a mountain and forest
Nylon hero image

Quick Information

0 ratings
Nylon icon image
mashumafi
Nylon

Run coroutines asynchronously. This module gives the feeling of threads without some of the headaches.

Supported Engine Version
3.4
Version String
0.4.1
License Version
MIT
Support Level
community
Modified Date
2 years ago
Git URL
Issue URL

Nylon

A gdscript module that runs coroutines asynchronously.

Purpose

This library gives the feeling of threads without some of the headaches.

Threading can be used to improve performance or allow running logic seperate from the main loop but in most cases come with their own problems including:

Nylon makes use of the yield keyword which creates a GDScriptFunctionState which can be used to resume a function. It calls resume on each frame which allows users to compute chunks at a time and not hog processing time. It uses the main thread so you avoid issues above with threads but still requires users to chunk work using yield to give back control to the main game loop.

Example

Say you have the following function which when called users will see a noticeable number of frames dropped.

func update_nodes():
    for child in get_children():
        update_child(child) # performance bottle-neck

The performance issue could be due to having hundreds of nodes to update. If this update could occur in the background and infrequently it might be worth using Nylon to perform the work. Using Nylon this function could be refactored like so:

func update_nodes():
    for child in get_children():
        update_child(child)
        yield()

It can then be run async by nylon with the following call:

func submit_update():
    Worker.run_async(self, "update_nodes")

Now Nylon will now update 1 node over the next hundred frames which could improve the user experience.

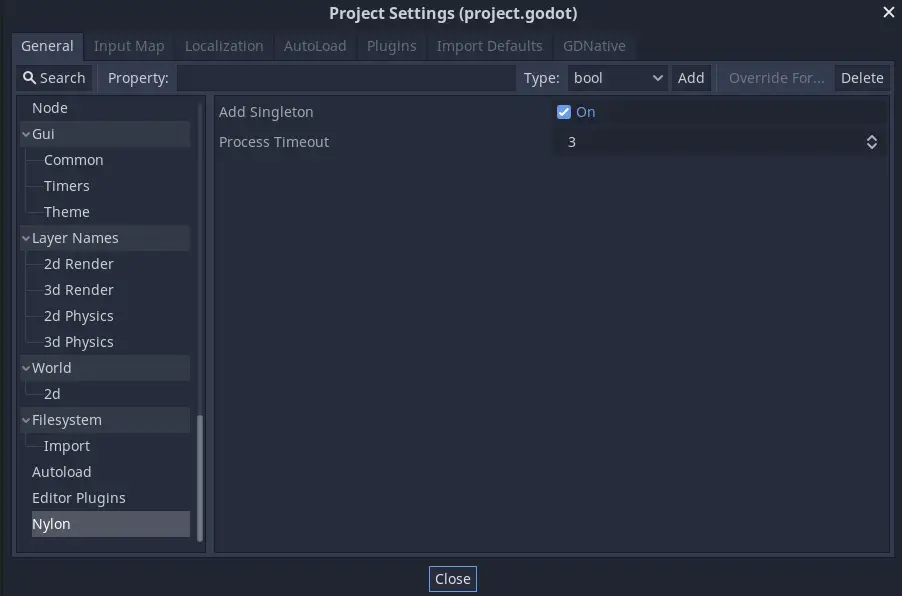

Settings

Settings can be found under the Nylon section in the project settings.

README Settings

Add Singleton

Adds a Worker singleton. If you prefer to do this on your own or use local nodes then disable this feature.

Process Timeout

The amount of time (in milliseconds) spent processing coroutines in a single frame. Nylon uses a round-robin queue to process tasks. Setting a value of 0 will process 1 task per frame. Lower numbers may improve frame rates if the queue grows large.

Usage

The main entry point for Nylon is the function Worker.run_async(instance, funcname, retry). It is recommended to add Worker as a autoload singleton depending on your workflow. It takes only the instace/funcname and how many times to run that function. See Silk which uses the builder pattern to create complex jobs.

You can run a function forever by supplying true for retry. It will run until cancelled which occurs when the coroutine return true.

Coroutines emit the following signals:

  • started when a function is first called at the beginning of each retry
  • ended when a function does not yield
    • It returns the latest result of the coroutine
  • completed when retry reaches 0 or the coroutine is cancelled
    • It yields the latest or final result of the coroutine depending if it was cancelled

See test.gd for more examples. When run you will see the _process() function gets called while Nylon is performing other operations.

You can build complex hierarchy of coroutines, here are a few that come with Nylon:

DelayedCallable

Adds a delay after calling the coroutine. This delay occurs before each retry.

# Update all nodes forever with a 500 millisecond delay between each update
var delayed_callable := DelayedCallable.new(self, "update_nodes", 500)
Worker.run_async(delayed_callable, "call_func", true) # true to repeat forever

DelayedResume

Adds a delay after each yield. This allows workers to take breaks between chunks.

# Update 1 node every 50 milliseconds
var delayed_resume := TimedResume.new(self, "update_nodes", 50)
Worker.run_async(delayed_resume, "call_func")

FrameCallable

Waits the requested number of idle frames after calling the coroutine. This delay occurs before each retry.

# Update all nodes forever with a 16 idle frames between each update
var frame_callable := FrameCallable.new(self, "update_nodes", 16)
Worker.run_async(frame_callable, "call_func", true) # true to repeat forever

FrameResume

Waits the requested number of idle frames after each yield. This allows workers to take breaks between chunks.

# Update 1 node every 3 frames
var frame_resume := FrameResume.new(self, "update_nodes", 3)
Worker.run_async(frame_resume, "call_func")

TimedResume

Processes a coroutine and yield control after timeout.

# Update nodes for 3 milliseconds of each frame.
var timed_resume := TimedResume.new(self, "update_nodes", 3)
Worker.run_async(delayed_retimed_resumesume, "call_func")

WeakCallable

Safely call coroutines of a WeakRef.

# Update nodes until `self` is no longer valid
var weak_callable := WeakCallable.new(weakref(self), "update_nodes")
Worker.run_async(weak_callable, "call_func")

Iterators

The Iter classes take an iterator and performs small amounts of work at a time. They take an iterator and a instance/funcname, the function should take 1 argument. With the above example you can call update_child directly.

BatchIter

Call the provided function on each item in iterator in chunks based on batch_size.

# Update 2 nodes per frame
var batch_iter := BatchIter.new(self, "update_child", get_children(), 2)
Worker.run_async(batch_iter, "call_func")

TimedIter

Call the provided function on each item in iterator in chunks based on timeout.

# Update nodes for 2 milliseconds each frame
var timed_iter := TimedIter.new(self, "update_child", get_children(), 2)
Worker.run_async(timed_iter, "call_func")

Callable

A custom implementation of FuncRef. The main benefit of Callable is it will increment the refrence counter for instances passed in.

Cancelling

You may want to cancel existing coroutines for reasons such as:

  • Stop them from running forever
  • The result is no longer needed

Nylon will stop processing a coroutine if at any point it returns exactly true. Another option is to use the cancel method on Coroutine which is returned by Worker.run_async(instance, funcname, retry). cancel can be used to stop processing entirely or to allow processing to finish resuming a function to it's final result.

var job := Worker.run_async(instance, funcname, retry)
job.cancel(true) # Allow job to finish resuming, emits `ended` once finished but never emits `completed`
job.cancel(false) # Immediately terminates a job, emits `ended` once called and `completed` emits on the next frame

Silk

The Silk class simplifies complex Nylon tasks using the builder pattern.

It can transform a redundant expression like:

var delayed_weak := WeakCallable.new(weakref(self), "print_wait")
var delayed_resume := DelayedResume.new(delayed_weak, "call_func", 5)
var delayed_start := DelayedCallable.new(delayed_resume, "call_func", 50)
Worker.run_async(delayed_start, "call_func", 3)

into the following:

Silk.new(weakref(self), "print_wait") \ # the base function
  .delayed_resume(5) \ # wait 5 milliseconds after each yield
  .delayed_callable(50) \ # wait 50 milliseconds before each retry
  .submit(Worker, 3) # tell worker to run the job three times async

Always remember that jobs are evaluated from bottom to top. In the above example it would be:

  1. delayed_callable
  2. delayed_resume
  3. print_wait

Passing a WeakRef into the contructor of Silk will create a WeakCallable and will automatically destroy the Nylon job when the instance is freed. Every other instance type will be handled normally meaning Nylon will contribute to the use count of Reference and you must manually cancel jobs using an Object before freeing them.

Run coroutines asynchronously. This module gives the feeling of threads without some of the headaches.
