Struct Class

The Struct class is a versatile tool for managing structured data in Godot Engine. It provides a flexible way to define and manipulate data structures with typed properties, akin to a database table or a struct in traditional programming languages.

Overview

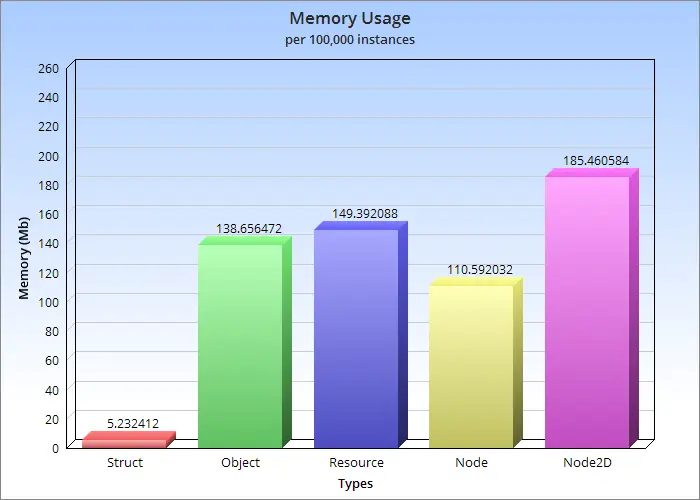

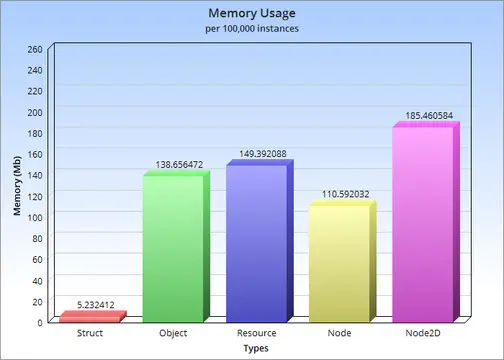

The Struct class is an extendable Resource implementing Godot's server/resource pattern to provide highly memory optimized and type safe structs. Data is distributed into PackedArrays and is accessed through the structs index, which doubles as its unique ID. This convention allows for very fast lookups, on par with Godot's internal Classes, while maintaining a memory footprint more then 25x smaller then an identical Object and more then 35x smaller then an identical Node2D.

Features

• Typed Properties: Define properties with specific data types such as strings, integers, floats, vectors, and colors.
• Efficient Memory Management: Utilizes Godot's packed arrays for efficient memory usage.
• Dynamic Instance Management: Easily create and manage multiple instances of structured data.
• Property Management: Add, remove, and clear properties dynamically.
• Convenient Access Methods: Access and manipulate data using property names or indices.
• Extensible: Easily extend the class to create custom structured data types.

Usage

Creating a Struct

var car := Struct.new([
    {"name":"make", "type":Struct.DataType.TypeString, "default":""},
    {"name":"model", "type":Struct.DataType.TypeString, "default":""},
    {"name":"year", "type":Struct.DataType.TypeInt32, "default":0},
    {"name":"color", "type":Struct.DataType.TypeColor, "default":Color.WHITE},
])

Instance Management

car.instance_count = 20
var my_car := car.instance()

Setting and Getting Properties

car.instance_set_property(my_car, "make", "Batmobile")
var my_car_make: String = car.instance_get_property(my_car, "make")

Extending the Struct Class

class_name Car extends Struct

func _init():
    property_add("make", Struct.DataType.TypeString, "")

func new(make: String) -> int:
    return instance({"make":make})

func set_instance_make(instance_id: int, value: String) -> void:
    data[0][instance_id] = value

func get_instance_make(instance_id: int) -> String:
    return data[0][instance_id]

Now we can interact in a manner that's at least somewhat more object oriented:

var car := Car.new()
var my_car := car.new("KITT")
print( car.get_instance_make(my_car) ) # KITT

car.set_instance_make(my_car, "Batmobile")
print( car.get_instance_make(my_car) ) # Batmobile

Clearing Struct Data

car.clear()

Notes

• This class is marked as experimental and may undergo changes in future versions.
• For more detailed information, refer to the class documentation and comments in the source code.
