Godot-Sweepline-Volornoi

A Godot 4.X addon that generates and displays a volornoi diagram using Fortone's sweepline algorithm. This project is a fun hobby project and I welcome you to fork it! :)

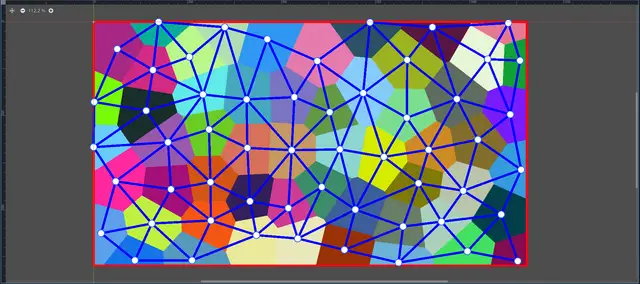

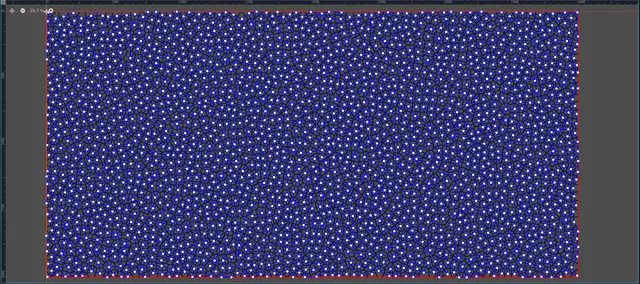

Example Results

Features

• Generate cells along with a nearest-neighbor graph
• Lloyd's relaxation algorithm
• Generated to a rectangular field

Operation

You can generate a volornoi diagram through code using this plugin. See example.tscn for a runnable example.

• To call the volornoi algorithm:

var point_list : Array[Vector2] = [Vector2(1,1), Vector2(3,1), Vector2(3,3), Vector2(2,2), Vector2(1,3)]
var voronoi : VoronoiSweepline = VoronoiSweepline.new()
voronoi.generate( point_list, [0, 4, 0, 4 ])

• VoronoiSweepline.generate parameters:
• • point_list - The list of seed points that the algorithm uses. Must be in a Array[ Vector2 ] format.
• • sizebox - The area that the algorithm is iterating over. [left wall, right wall, floor, ceiling]. They CANNOT be negative and all points must be inside of the diagram. They cannot be on the border or errors may occur.

     (0,0)--floor----+
       |             |
   left wall     right wall
       |             |
       +---ceiling-(x,y)


• To use Lyod's relaxation algorithm

voronoi.relax()

Notes

• Errors with polygon generation occur if there are points too close together due to computer floating point inprecision. Try to keep points at least 1 away from each other to minimize errors. Even further to ensure no errors occur.
• To relax the diagram you have to generate the diagram first so there are cells to relax

Data Structures

Sweepline Algorithm

class VoronoiSweepline:
    func _init() -> void
    func generate(point_list : Array[Vector2], sizebox : Array) -> void
    func relax() -> void
    func process_cell_chunk( chunk : Array, start_idx : int, output_lst : Array[Vector2]) -> void
    func calc_centroid(pointlist : Array) -> Vector2

License

This project is licensed under the MIT License - see the LICENSE.md file for details.

Acknowledgments

• Easily explains the fortone sweepline algorithm
