Long Scene Manager Plugin

中文文档

The Long Scene Manager is a Godot plugin designed to simplify and optimize the scene switching process, especially for complex scenes that require long loading times. It improves user experience by providing asynchronous scene loading, caching mechanisms, and customizable loading interfaces.

Note: This documentation is still being updated. While the Chinese annotations are complete, the English annotations are not yet fully implemented.

Features

• Asynchronous Scene Switching: Non-blocking scene transitions using await
• Customizable Loading Screens: Support for both default and custom loading UI scenes
• No-transition Mode: Quick switching with "no_transition" option
• Scene Preloading: Load scenes into memory cache in advance
• Cache Management: Configurable maximum cache size, cache clearing, and cache status retrieval
• LRU Cache Policy: Implements Least Recently Used cache eviction strategy
• Debug Support: Internal state printing for diagnostics

Icons

The plugin includes the following icons in the image_icon folder:

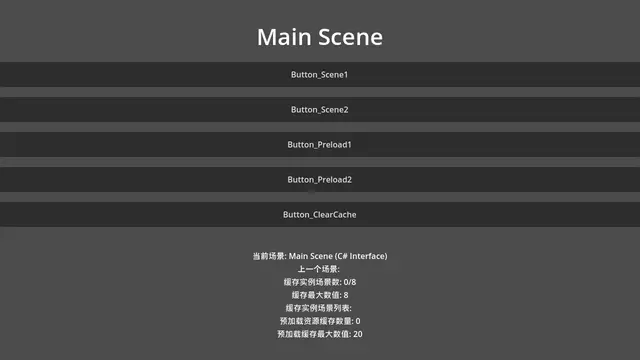

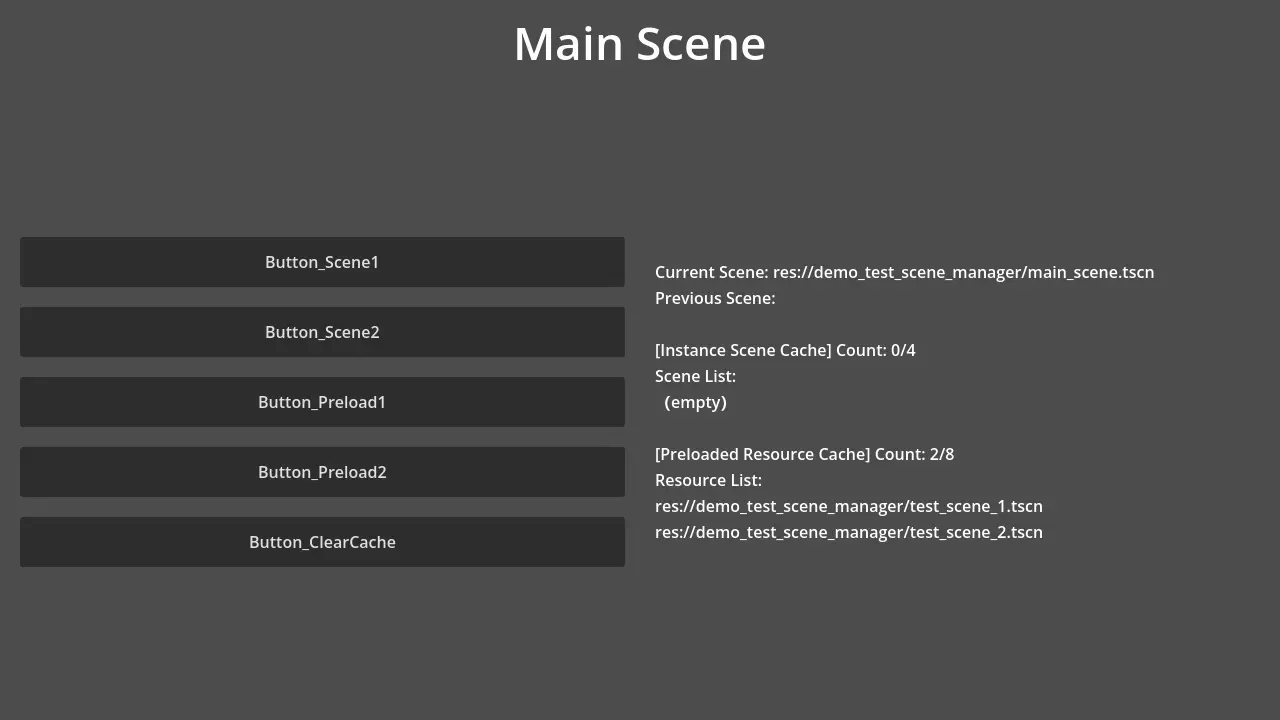

• Main Scene

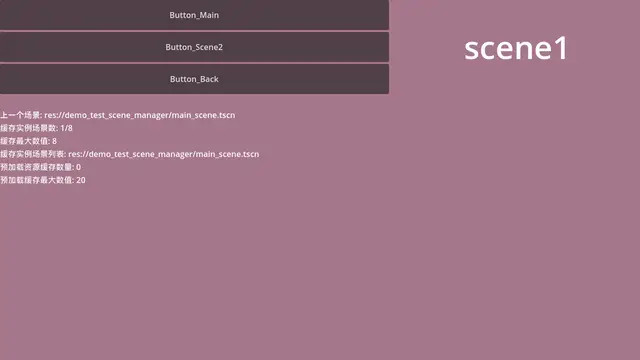

• Scene 1

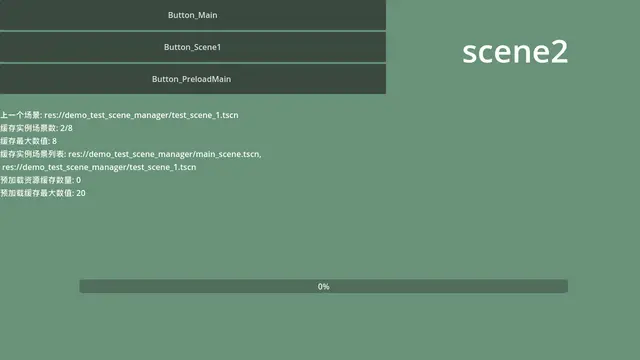

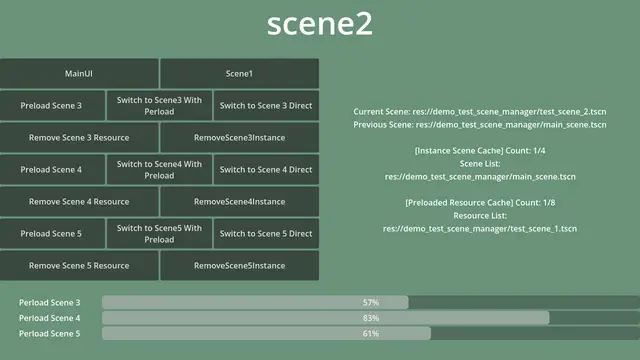

• Scene 2

Installation

1. Copy the addons/long_scene_manager folder into your project's addons folder
2. Enable the plugin in Godot:
   • Go to Project → Project Settings → Plugins
   • Find "Long Scene Manager" and set its status to "Active"

Plugin Configuration

This plugin is implemented as a global autoload singleton. Depending on whether you want to use GDScript or C# implementation, you need to change the script in plugin.cfg file and verify the path in the Autoload settings:

1. Open addons/long_scene_manager/plugin.cfg
2. Modify the script entry to point to either the GDScript or C# implementation:
   • For GDScript: script="res://addons/long_scene_manager/autoload/long_scene_manager.gd"
   • For C#: script="res://addons/long_scene_manager/autoload/LongSceneManagerCs.cs"
3. In Project Settings → Autoload, verify that the correct path is registered for the LongSceneManager singleton

Caching Mechanism

The plugin implements a dual-layer caching system:

1. Instance Cache: Stores fully instantiated scene nodes that are not currently active but kept in memory for quick switching
2. Preload Resource Cache: Stores loaded PackedScene resources for even faster instantiation

Both caches implement an LRU (Least Recently Used) eviction policy with configurable maximum sizes:

• Instance cache: Controlled by max_cache_size (default: 8)
• Preload resource cache: Controlled by max_preload_resource_cache_size (default: 20)

When a cache reaches its maximum capacity, the least recently used items are automatically removed to make space for new ones.

Usage

1. Switch Scenes with Default Loading Screen

await LongSceneManager.switch_scene("res://scenes/level2.tscn")

2. Switch Scenes with Custom Loading Screen

await LongSceneManager.switch_scene(
    "res://scenes/level2.tscn",
    true,  # Use cache
    "res://ui/custom_load_screen.tscn"  # Custom loading screen
)

3. Switch Scenes Without Transition

await LongSceneManager.switch_scene(
    "res://scenes/level2.tscn",
    true,
    "no_transition"  # Special value indicating no transition
)

4. Preload a Scene

LongSceneManager.preload_scene("res://scenes/level3.tscn")

5. Get Cache Information

var cache_info = LongSceneManager.get_cache_info()
print("Cache Info: ", cache_info)

6. Dynamically Adjust Cache Size

LongSceneManager.set_max_cache_size(10)

7. Clear Cache

LongSceneManager.clear_cache()

8. Print Debug Information

LongSceneManager.print_debug_info()

API Reference

Scene Switching Methods

• switch_scene(scene_path: String, use_cache: bool = true, load_screen_path: String = "") Switch to a new scene with optional caching and custom loading screen

• switch_scene_gd(scene_path: String, use_cache: bool = true, load_screen_path: String = "") GDScript compatible wrapper for scene switching

Preloading Methods

• preload_scene(scene_path: String) Preload a scene into the cache

• preload_scene_gd(scene_path: String) GDScript compatible wrapper for scene preloading

Cache Management Methods

• clear_cache() Clear all cached scenes and preloaded resources

• get_cache_info() Get detailed information about the current cache status

• is_scene_cached(scene_path: String) Check if a scene is currently cached

• set_max_cache_size(new_size: int) Set the maximum number of scenes that can be cached

• set_max_preload_resource_cache_size(new_size: int) Set the maximum number of preloaded resources that can be cached

Utility Methods

• get_current_scene() Get the current scene instance

• get_previous_scene_path() Get the path of the previous scene

• get_loading_progress(scene_path: String) Get the loading progress for a scene (0.0 to 1.0)

• print_debug_info() Print debug information to the console

Signals

• scene_preload_started(scene_path: String) Emitted when scene preloading starts

• scene_preload_completed(scene_path: String) Emitted when scene preloading completes

• scene_switch_started(from_scene: String, to_scene: String) Emitted when a scene switch begins

• scene_switch_completed(scene_path: String) Emitted when a scene switch completes

• scene_cached(scene_path: String) Emitted when a scene is added to cache

• scene_removed_from_cache(scene_path: String) Emitted when a scene is removed from cache

• load_screen_shown(load_screen_instance: Node) Emitted when a loading screen is shown

• load_screen_hidden(load_screen_instance: Node) Emitted when a loading screen is hidden

Configuration

The plugin exposes several configuration options that can be adjusted in the editor:

• max_cache_size: Maximum number of scenes to cache (default: 8, range: 1-20)
• max_preload_resource_cache_size: Maximum number of preloaded resources to cache (default: 20, range: 1-50)
• use_async_loading: Whether to use asynchronous loading (default: true)
• always_use_default_load_screen: Always use the default loading screen (default: false)

Technical Details

Architecture

The plugin is built around a singleton pattern using Godot's Autoload feature. The main class LongSceneManager manages all scene transitions and caching operations.

Caching Strategy

The plugin implements an LRU (Least Recently Used) cache eviction policy for both instantiated scenes and preloaded resources. This ensures optimal memory usage while providing fast scene transitions.

Cross-language Support

The plugin supports both GDScript and C# implementations. The C# version is located in addons/long_scene_manager/autoload/LongSceneManagerCs.cs.

Troubleshooting

Scene Preloading Issues

If you're having trouble with scene preloading after clearing the cache, make sure you're using the latest version of the plugin which properly resets the loading state when clearing the cache.

Cache Not Working

Ensure that the use_cache parameter is set to true when switching scenes if you want to take advantage of the caching mechanism.

Custom Loading Screens

When creating custom loading screens, make sure they inherit from a valid Godot node type and implement the expected methods (fade_in, fade_out, etc.) if you plan to use them.
