Delaunator GDScript README Godot v3.2

A GDScript port of Delaunator: A fast library for Delaunay triangulation of 2D points.

This is a port of Mapbox's Delaunator.

Note: It seems like GDScript is not that fast (in reference of the slogan above, taken from the original library). See the performance benchmarks.

README Delaunay triangulation Delaunay triangulation

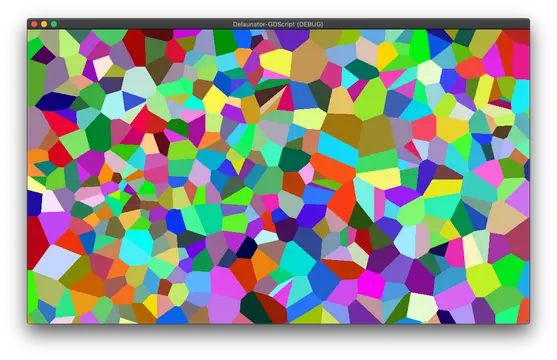

README Voronoi cells Voronoi cells

Usage

const Delaunator = preload("res://Delaunator.gd")

var points = PoolVector2Array([
  Vector2(0, 0), Vector2(1024, 0), Vector2(1024, 600), Vector2(0, 600), Vector2(29, 390), Vector2(859, 300), Vector2(65, 342), Vector2(86, 333), Vector2(962, 212), Vector2(211, 351), Vector2(3, 594), Vector2(421, 278), Vector2(608, 271), Vector2(230, 538), Vector2(870, 454), Vector2(850, 351), Vector2(583, 385), Vector2(907, 480), Vector2(749, 533), Vector2(877, 232), Vector2(720, 546), Vector2(1003, 541), Vector2(696, 594), Vector2(102, 306)
])

var delaunay = Delaunator.new(points)

print(delaunay.triangles)
# >> [11, 16, 12, 11, 13, 16, 22, 20, 16, 16, 15, 12, 20, 18, 16, 13, 22, 16, 20, 22, 18, 18, 15, 16, 15, 5, 12, 9, 13, 11, 8, 19, 5, 5, 19, 12, 12, 0, 11, 18, 14, 15, 15, 8, 5, 17, 14, 18, 0, 23, 11, 11, 23, 9, 9, 4, 13, 14, 17, 15, 21, 17, 2, 23, 7, 9, 23, 6, 7, 7, 4, 9, 17, 8, 15, 19, 1, 12, 6, 4, 7, 2, 17, 18, 17, 21, 8, 22, 2, 18, 21, 1, 8, 4, 10, 13, 13, 3, 22, 22, 3, 2, 4, 3, 10, 10, 3, 13, 2, 1, 21, 8, 1, 19, 1, 0, 12, 23, 0, 6, 6, 0, 4, 4, 0, 3]

print(delaunay.halfedges)
# >> [5, 11, 38, 28, 17, 0, 18, 14, 16, 22, 26, 1, 20, 23, 7, 98, 8, 4, 6, 89, 12, 41, 9, 13, 44, 35, 10, 56, 3, 53, 113, 33, 43, 31, 77, 25, 115, 50, 2, 46, 59, 21, 73, 32, 24, 57, 39, 82, 117, 51, 37, 49, 65, 29, 70, 95, 27, 45, 74, 40, 84, 81, 110, 68, 71, 52, 119, 80, 63, 79, 54, 64, 86, 42, 58, 112, 116, 34, 122, 69, 67, 61, 47, 88, 60, 92, 72, 101, 83, 19, 109, 111, 85, 104, 107, 55, 106, 99, 15, 97, -1, 87, 125, 105, 93, 103, 96, 94, -1, 90, 62, 91, 75, 30, -1, 36, 76, 48, 120, 66, 118, 123, 78, 121, -1, 102]

print(delaunay.hull)
# >> [1, 0, 3, 2]

print(delaunay.coords)
# >> [0, 0, 1024, 0, 1024, 600, 0, 600, 29, 390, 859, 300, 65, 342, 86, 333, 962, 212, 211, 351, 3, 594, 421, 278, 608, 271, 230, 538, 870, 454, 850, 351, 583, 385, 907, 480, 749, 533, 877, 232, 720, 546, 1003, 541, 696, 594, 102, 306]

API Reference

Delaunator.new(points)

Constructs a Delaunay triangulation object given an array of points (Vector2(x, y)). Duplicate points are skipped.

Delaunator.new(points).triangles

An array of triangle vertex indices (each group of three numbers forms a triangle). All triangles are directed counterclockwise.

To get the coordinates of all triangles, use:

var coordinates = []

for i in range(0, triangles.size(), 3):
  coordinates.append([
    points[triangles[i]],
    points[triangles[i + 1]],
    points[triangles[i + 2]]
  ])

Delaunator.new(points).halfedges

An array of triangle half-edge indices that allows you to traverse the triangulation. i-th half-edge in the array corresponds to vertex triangles[i] the half-edge is coming from. halfedges[i] is the index of a twin half-edge in an adjacent triangle (or -1 for outer half-edges on the convex hull).

The flat array-based data structures might be counterintuitive, but they're one of the key reasons this library is fast.

Delaunator.new(points).hull

An array of indices that reference points on the convex hull of the input data, counter-clockwise.

Delaunator.new(points).coords

An array of input coordinates in the form [x0, y0, x1, y1, ...], of the type provided in the constructor.

Delaunator.new(points).update()

Updates the triangulation if you modified Delaunator.new(points).coords values in place, avoiding expensive memory allocations. Useful for iterative relaxation algorithms such as Lloyd's.

Performance

Benchmark results performed on a Macbook Pro Retina 15" 2015 with Godot v3.2 and using this method:

var start = OS.get_ticks_msec()
var delaunay = Delaunator.new(points)
var elapsed = OS.get_ticks_msec() - start
print(elapsed)
10 points 100 points 1.000 points 10.000 points 100.000 points
~1ms ~6ms ~67ms ~760ms ~9.4s

Changelog

See CHANGELOG.

Authors

Credits

Thanks to:

License

MIT License.
