DynamicDataTable for Godot 4

DynamicDataTable is a GDScript plugin for Godot 4 that allows you to create and manage dynamic data tables easily and flexibly.

Features

• Dynamically create tables with customizable headers and data.
• Dynamic resizing column widths.
• Support for various data types (strings, numbers).
• Column sorting in ascending or descending order.
• Mouse events on headers and data cells
• Keyboard events on selected row (cursor up/down, page up/down, home, end)
• Appearance customization through themes and styles.
• Compatibility from Godot 4.3.

Installation

1. Download the plugin as a ZIP archive.
2. Extract the archive to the addons folder of your Godot project.
3. Enable the plugin from the Project Settings > Plugins menu.

Usage

1. Add a DynamicDataTable node to your scene, as child of a Control node.
2. Add script to Control node and create a data array representing the table rows.
3. Set the column headers using the set_headers() method.
4. Set the table data using the set_data() method.
5. Customize the table appearance through the Inspector properties.

or

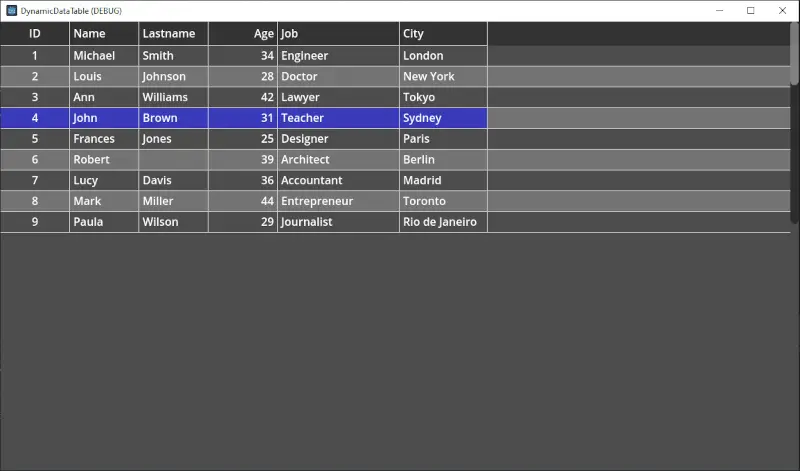

Download this entire Godot Project and run the main scene (example.tscn)

Code Example

extends Control

# Reference to dynamic table
@onready var dynamic_table = $DynamicTable

var headers				# array of columns header
var data				# array of data, rows and columns
var ordering = true			# default sorting direction, ascending
var last_column = -1			# last sorted column
var selected_row = -1			# last selected row

func _ready():
    # Set table header
    headers = ["ID|C", "Name", "Lastname", "Age|r", "Job", "City"]
    dynamic_table.set_headers(headers)

    # Example data
    data = [
        [1, "Michael", "Smith", 34, "Engineer", "London"],
        [2, "Louis", "Johnson", 28, "Doctor", "New York"],
        [3, "Ann", "Williams", 42, "Lawyer", "Tokyo"],
        [4, "John", "Brown", 31, "Teacher", "Sydney"],
        [5, "Frances", "Jones", 25, "Designer", "Paris"],
        [6, "Robert", "", 39, "Architect", "Berlin"],
        [7, "Lucy", "Davis", 36, "Accountant", "Madrid"],
        [8, "Mark", "Miller", 44, "Entrepreneur", "Toronto"],
        [9, "Paula", "Wilson", 29, "Journalist", "Rio de Janeiro"],
        [10, "Stephen", "Moore", 33, "Programmer", "Dubai"],
        [12, "James", "Taylor", 28, "Doctor", "Chicago"],
        [13, "Carmen", "Anderson", 42, "Lawyer", "Hong Kong"],
        [14, "John", "Thomas", 39, "Architect", "Amsterdam"],
        [15, "Paul", "Jackson", 44, "Entrepreneur", "Singapore"],
        [16, "Jennifer", "White", 29, "Journalist", "Cape Town"],
        [17, "Luke", "Harris", 33, "Programmer", "Seoul"],
        [18, "Peter", "Martin", 25, "Designer", "Mexico City"],
        [19, "Matthew", "Thompson", 39, "Architect", "Moscow"],
        [20, "Louise", "Garcia", 36, "Accountant", "Istanbul"],
        [21, "Matthew", "Martinez", 44, "Entrepreneur", "Buenos Aires"],
        [22, "Stephanie", "Robinson", 29, "Journalist", "Cairo"],
        [23, "Christopher", "Clark", 51, "Architect", "Tokyo"],
        [24, "Amanda", "Rodriguez", 33, "Graphic Designer", "Sydney"],
        [25, "Daniel", "Lewis", 47, "Software Engineer", "Berlin"],
        [26, "Victoria", "Lee", 28, "Marketing Specialist", "Toronto"],
        [27, "Joseph", "Walker", 55, "Professor", "London"],
        [28, "Ashley", "Young", 39, "Chef", "Paris"],
        [29, "Kevin", "Allen", 42, "Financial Analyst", "Mexico City"],
        [30, "Elizabeth", "King", 31, "Photographer", "Rome"]
    ]

    # Insert data table
    dynamic_table.set_data(data)

    # Signals connections
    dynamic_table.cell_selected.connect(_on_cell_selected)
    dynamic_table.header_clicked.connect(_on_header_clicked)
    dynamic_table.column_resized.connect(_on_column_resized)

# On selected cell callback
func _on_cell_selected(row, column):
    print("Cell selected on row ", row, ", column ", column)
    print("Cell value: ", dynamic_table.get_cell_value(row, column))
    print("Row value: ", dynamic_table.get_row_value(row))
    selected_row = row

# On clicked header cell callback
func _on_header_clicked(column):
    print("Header clicked on column ", column)
    if (column == last_column):
        ordering = not ordering			# invert previous column sort direction
    else:
        ordering = true				# default sort ordering direction
    var new_row = dynamic_table.ordering_data(column, ordering, selected_row)
    selected_row = new_row				# restoring potential previous row selected
    last_column = column
    dynamic_table._selected_cell = [new_row, last_column] # select row at the nuew position

# On resized column callback
func _on_column_resized(column, new_width):
    print("Column ", column, " resized at width ", new_width)
