Debug Overlay
An asset by GammaGames
Install Asset
Install via Godot
To maintain one source of truth, Godot Asset Library is just a mirror of the old asset library so you can download directly on Godot via the integrated asset library browser
Quick Information
Debug Overlay

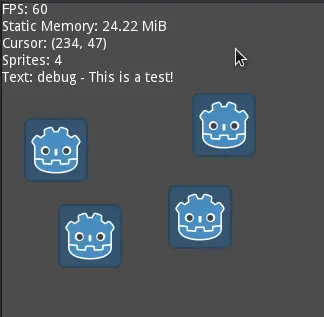

A simple overlay inspired by Gonkee's guide; easily add variables to monitor that will be displayed in the game window.
Supported Engine Version
3.2
Version String
1.0.0
License Version
MIT
Support Level
community
Modified Date
4 years ago
Git URL
Issue URL
godot-debug-overlay
A simple debug overlay singleton based on Gonkee's tutorial: https://youtu.be/8Us2cteHbbo
Installation
Add the DebugOverlay.gd and DebugOverlay.tscn files to your addons/debug-overlay folder. Alternatively, you can download it from the Asset Library and install it from there. (Note: TODO)
Use
The DebugOverlay.tscn scene can either be added to your game as an AutoLoad or added as a child to a camera. An example of adding monitors to an AutoLoad singleton can be done like so:
DebugOverlay.visible = true
# Add a property monitor
DebugOverlay.add_monitor("Cursor X", self, "Sprite:global_position:x")
# Add a function (from "self") monitor
DebugOverlay.add_monitor("Sprites", self, "", "get_sprite_count")
# Add a function (from "self") monitor with arguments
DebugOverlay.add_monitor("Text", self, "", "get_debug_text", ["This is a test!"])
Additional demos are available in the addons/debug-overlay/demo folder.
Icon: (CC0 1.0 Universal) Kenney
A simple overlay inspired by Gonkee's guide; easily add variables to monitor that will be displayed in the game window.
