Godot Compass

> Best Suited for 4.0Compass implementation for different needs in Godot Engine. Adds new Compass3D, Compass2D and CompassBar node in Editor.## Usage1. Search and add CompassBar/Compass3D/Compass2D using Ctrl-A or Add Node button2. Assign the Parent property for rotation calculation, **Parent** is the **rotating node**Open example.tscn and read README.md to understand more.Read GitHub wiki for latest Documentation: https://github.com/vi4hu/godot_compass/wiki/Usage

Supported Engine Version
4.0
Version String
0.6.1
License Version
MIT
Support Level
community
Modified Date
10 months ago
Git URL
Issue URL

Godot Compass :compass:

Compass implementation for different needs in Godot Engine, written in GDScript.

This project is a Godot Engine addon that adds new CompassBar, Compass3D, and Compass2D Nodes in Editor. These new nodes make easy and fast Compass creation possible for 3D and 2D games. It is available under the terms of the MIT License.

Installation

Method One:

  1. Search "Godot Compass" in the AssetLib
  2. Download and Install

Method Two:

  1. Clone this repo or download as zip from matching branch
  2. Copy/Move the res://addons/compass directory to your res://addons directory

Usage

  1. Search and add CompassBar/Compass3D/Compass2D using Ctrl-A or Add Node button
  2. Assign the Parent property for rotation calculation, Parent is the rotating node

Note: To use CompassBar and Compass2D for 2d games, if you are not rotating the node, provide the parent_property_for_current_direction, for example save your current direction in a var dir and type this in the property.

CompassBar

Property Explanation Default
Parent Rotating Node for calculation None
Mode condition, which North Vector type to use ["3D", "2D"] "3D"
Parent Property For Current Direction parent property defining current direction (Mode 2D only) rotation
Lerp Speed Smoothing (0.01, 0.5) 0.1
Shader Property Explanation Default
North North offset in radians (0, 2*PI) 0.0 (-Y for 2D, -Z for 3D)

Compass3D

Property Explanation Default
North Sets the north direction (-180, 180) 0 (-Z)
Parent Rotating Node for calculation None
Custom Container Resource change container mesh container3d.mesh
Custom needle Resource change needle mesh needle3d.mesh
Lerp Speed Smoothing (0.01, 0.5) 0.1
Rotate Container Check to Rotate Container instead of Needle false

Compass2D

Property Explanation Default
North Sets the north direction (-180, 180) 0 (-Y for 2D, -Z for 3D)
Mode condition, which North Vector type to use ["3D", "2D"] "3D"
Parent Rotating Node for calculation None
Parent Property For Current Direction parent property defining current direction (Mode 2D only) global_rotation
Custom Container ImageTexture change container png container2d.png
Custom needle ImageTexture change needle png needle2d.png
Lerp Speed Smoothing (0.01, 0.5) 0.1
Rotate Container Check to rotate Container instead of Needle false

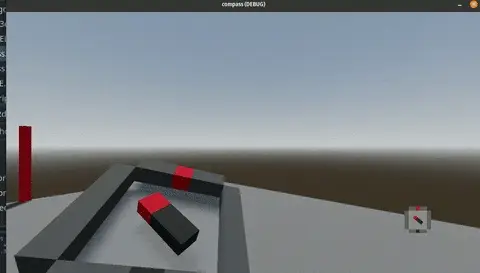

Example

README media

Check out the given example.tscn for 3d games and example2d.tscn for 2d games in example.

use left/right arrow button to rotate camera for 3d example

use Q(left) and R(right) for 2d example

> Best Suited for 4.0

Compass implementation for different needs in Godot Engine. Adds new Compass3D, Compass2D and CompassBar node in Editor.

## Usage
1. Search and add CompassBar/Compass3D/Compass2D using Ctrl-A or Add Node button
2. Assign the Parent property for rotation calculation, **Parent** is the **rotating node**

Open example.tscn and read README.md to understand more.

Read GitHub wiki for latest Documentation: https://github.com/vi4hu/godot_compass/wiki/Usage
